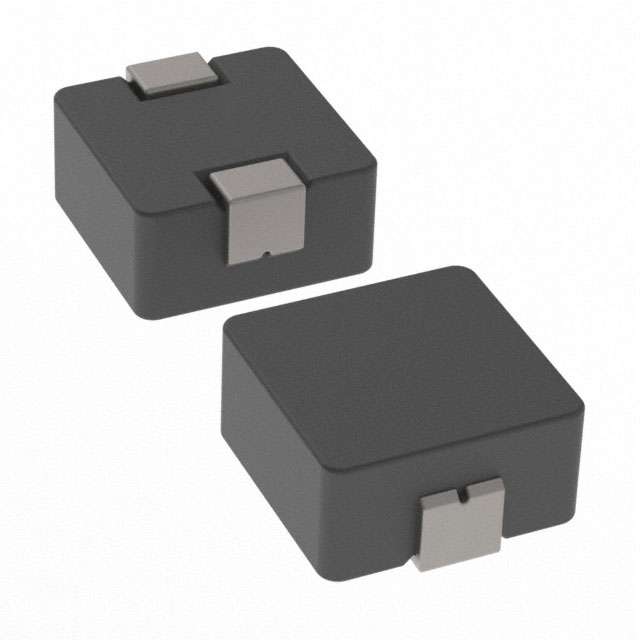

PA4343.333ANLT
ActivePulse Electronics
FIXED IND 33UH 6.5A 55 MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
PA4343.333ANLT
ActivePulse Electronics
FIXED IND 33UH 6.5A 55 MOHM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PA4343.333ANLT |
|---|---|
| Current - Saturation (Isat) | 8 A |
| Current Rating (Amps) | 6.5 A |
| DC Resistance (DCR) [Max] | 55 mOhm |
| Height - Seated (Max) [Max] [z] | 0.256 in |
| Height - Seated (Max) [Max] [z] | 6.5 mm |
| Inductance | 33 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension [x] | 0.531 in |
| Size / Dimension [x] | 13.5 mm |
| Size / Dimension [y] | 12.6 mm |
| Size / Dimension [y] | 0.496 in |
| Tolerance | 20 % |
| Type | Molded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2000 | $ 0.97 | |
Description
General part information
PA4343.333ANLT
33 µH Shielded Molded Inductor 6.5 A 55mOhm Max Nonstandard
