FVT20020E1K000JE
ActiveVishay Huntington Electric Inc.

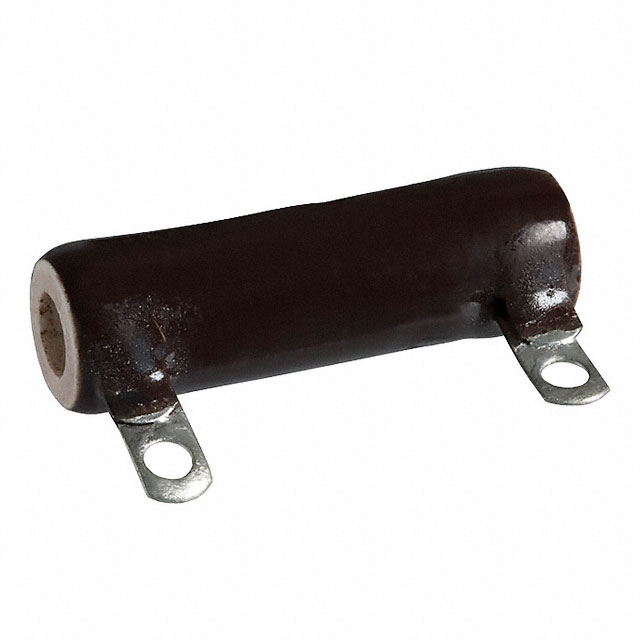

RES CHAS MNT 1K OHM 5% 225W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FVT20020E1K000JE
ActiveVishay Huntington Electric Inc.
RES CHAS MNT 1K OHM 5% 225W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FVT20020E1K000JE |
|---|---|
| Coating, Housing Type | Vitreous Enamel Coated |
| Composition | Wirewound |
| Lead Style | Solder Lugs |
| Mounting Feature | Brackets (not included) |
| Operating Temperature [Max] | 350 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial, Tubular |
| Power (Watts) | 225 W |
| Resistance | 1000 Ohms |
| Size / Dimension [diameter] | 28.58 mm |
| Size / Dimension [diameter] | 1.125 " |
| Size / Dimension [z] | 266.7 mm |
| Size / Dimension [z] | 10.5 " |
| Temperature Coefficient | 260 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 25.56 | |
| 10 | $ 21.12 | |||
| 100 | $ 17.69 | |||
Description
General part information
FVT20020E1K000JE
1 kOhms ±5% 225W Wirewound Chassis Mount Resistor
Documents
Technical documentation and resources
