PE1964
ActivePasternack

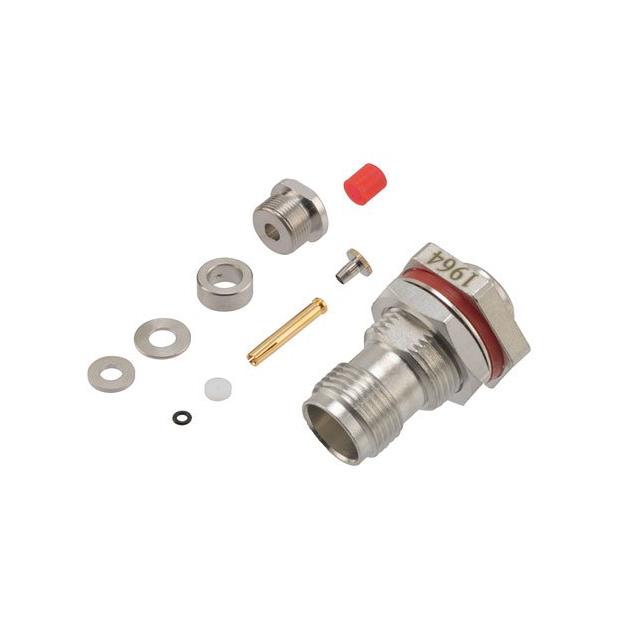

TNC FEMALE BULKHEAD MOUNT HERMET
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PE1964
ActivePasternack
TNC FEMALE BULKHEAD MOUNT HERMET
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PE1964 |
|---|---|
| Body Finish | Tri-Metal |
| Body Material | Brass |
| Cable Group | RG-174, 188, 316 |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Connector Style | TNC |
| Connector Type | Receptacle, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 4.5 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Insertion Loss | 0.21 dB |
| Mating Cycles | 500 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Clamp |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 16.71 | |
| 10 | $ 16.38 | |||
| 25 | $ 16.04 | |||
| 100 | $ 15.71 | |||
Description
General part information
PE1964
TNC Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder
