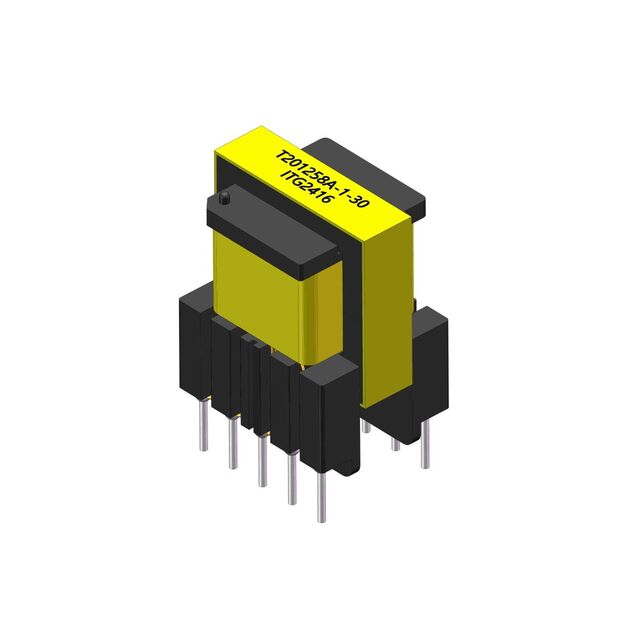

T201258A-1-30
ActiveITG Electronics, Inc.
1.3MH, 0.13OHM TO 4.0OHM, 0.7AMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T201258A-1-30
ActiveITG Electronics, Inc.
1.3MH, 0.13OHM TO 4.0OHM, 0.7AMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | T201258A-1-30 |
|---|---|
| Chipset Manufacturer | Renesas Electronics Corporation |
| Height - Seated (Max) [Max] [z] | 22 mm |
| Height - Seated (Max) [Max] [z] | 0.866 in |
| Inductance @ Frequency | 1.3 mH |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -25 °C |
| Size / Dimension [x] | 17 mm |
| Size / Dimension [x] | 0.669 " |
| Size / Dimension [y] | 14 mm |
| Size / Dimension [y] | 0.551 in |
| Style | Laminated Core |
| Type | For AC/DC Converters |
| Voltage - Isolation | 4000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 2 | $ 6.00 | |
| 10 | $ 5.00 | |||
| 50 | $ 4.00 | |||
| 100 | $ 3.60 | |||
Description
General part information
T201258A-1-30
Flyback Converters For For AC/DC Converters SMPS Transformer 4000V Isolation Through Hole
Documents
Technical documentation and resources
