KAT-SP
ActiveTRUMETER
PRESET COUNTER, 12-DIGIT, 12-250 V, OPTOCOUPLED, 7 MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | KAT-SP |
|---|---|
| Count Rate | 35 Hz |
| Display Characters - Height [z] | 7 mm |
| Display Characters - Height [z] | 0.275 in |
| Display Type | LCD - Black Characters |
| Ingress Protection | IP65 - Dust Protected, Water Resistant, NEMA 4 |
| Input Type | Voltage |
| Number of Characters Per Row | 6 |
| Operating Mode | Down |
| Operating Temperature [Max] [custom] | 50 °C |
| Operating Temperature [Min] [custom] | -10 °C |
| Panel Cutout Dimensions [x] | 45 mm |
| Panel Cutout Dimensions [y] | 45 mm |
| Termination Style | Wire Leads |
| Type | Time Counter (Hour Meter) |
| Voltage - Supply [Max] | 250 VAC |
| Voltage - Supply [Min] | 12 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Newark | Each | 1 | $ 484.82 | |
| 5 | $ 460.49 | |||
| 10 | $ 426.80 | |||
| 25 | $ 389.36 | |||
| 50 | $ 336.95 | |||
| 100 | $ 314.48 | |||
| 250 | $ 286.40 | |||
Description
General part information

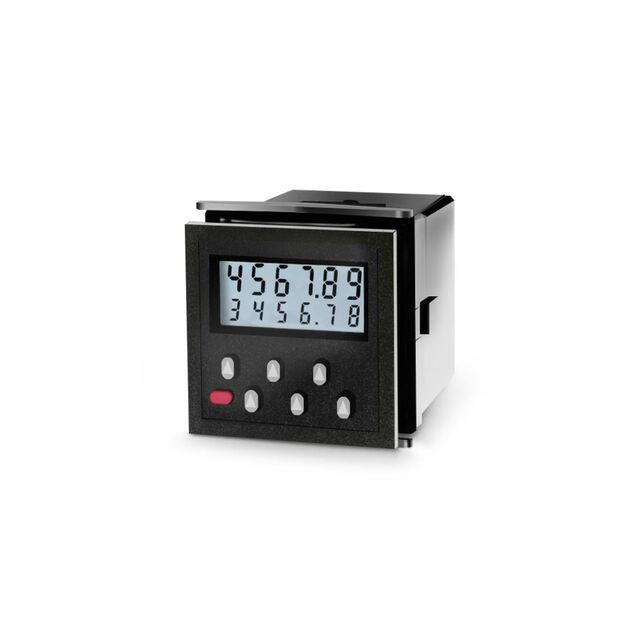

KAT-SP
KALTROL- SP self powered preset counter with 6 digit LCD display. It features programming via six front-panel digit keys (one key assigned to each digit) and one front-panel reset key. Typically used in batch counting and control, coil winding and wire cutting, length measurement, packing-line control, stop/start control and numerical position control.
