A1AF2617AFRAA101
ActiveIcotronix

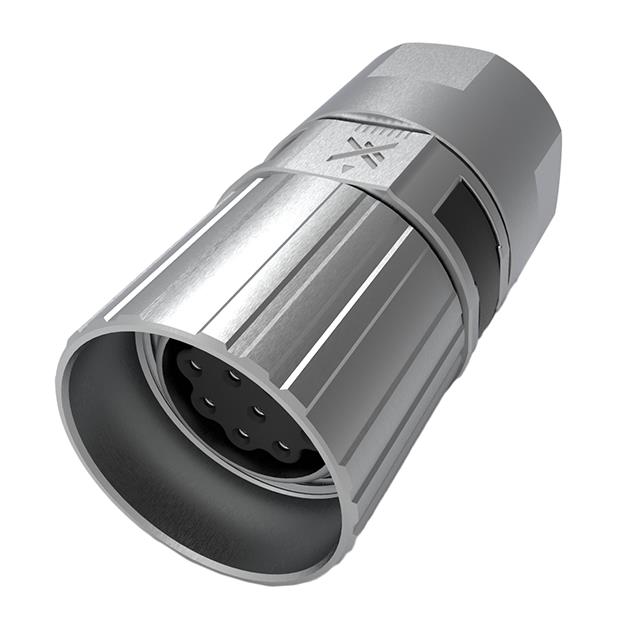

M23 SIGNAL CONNECTOR DOME-NUT ST
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A1AF2617AFRAA101
ActiveIcotronix
M23 SIGNAL CONNECTOR DOME-NUT ST
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A1AF2617AFRAA101 |
|---|---|
| Cable Opening [Max] [diameter] | 0.591 in |
| Cable Opening [Max] [diameter] | 15 mm |
| Cable Opening [Min] [diameter] | 12 mm |
| Cable Opening [Min] [diameter] | 0.472 in |
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Current Rating (Amps) | 7 A |
| Features | Coupling Nut |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 |
| Mounting Feature | Bulkhead |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -25 °C |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Metal |
| Shell Size - Insert | 1 |
| Shielding | Shielded |
| Termination | Crimp |
| Voltage Rating | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 43.93 | |
Description
General part information
A1AF2617AFRAA101
17 Position Circular Connector Plug, Female Sockets Crimp
