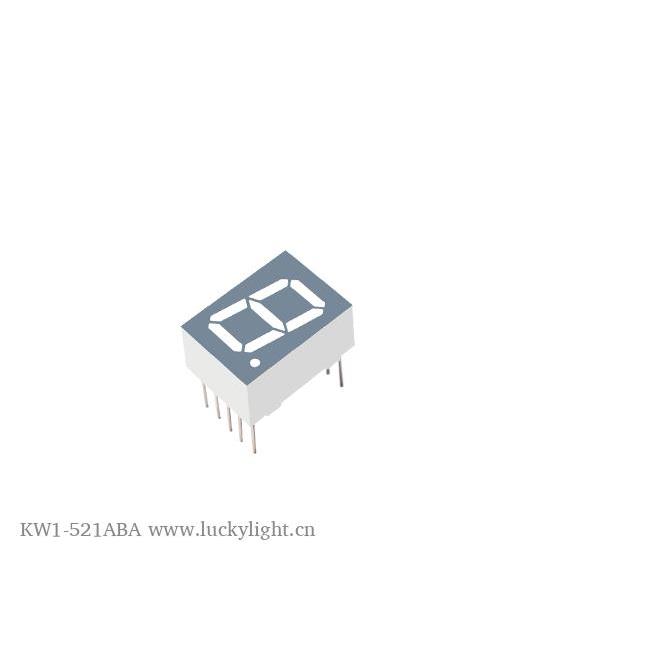

KW1-521ABA
ActiveLuckylight
0.52'' 1-DIGIT 7SEG BLU TH DISP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KW1-521ABA
ActiveLuckylight
0.52'' 1-DIGIT 7SEG BLU TH DISP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KW1-521ABA |
|---|---|
| Color | Blue |
| Common Pin | Common Anode |
| Current - Test | 10 mA |
| Digit/Alpha Size | 13.21 mm |
| Digit/Alpha Size | 0.52 in |
| Display Type | 7-Segment |
| Millicandela Rating | 25 mcd |
| Number of Characters [custom] | 1 |
| Package / Case | 10-DIP |
| Package / Case [x] | 0.579 in |
| Package / Case [y] | 14.73 mm |
| Power Dissipation (Max) [Max] | 35 mW |
| Size / Dimension [x] | 0.276 " |
| Size / Dimension [x] | 7 mm |
| Size / Dimension [y] | 0.488 in |
| Size / Dimension [y] | 12.4 mm |
| Size / Dimension [z] | 0.693 in |
| Size / Dimension [z] | 17.6 mm |
| Voltage - Forward (Vf) (Typ) | 2.9 V |
| Wavelength - Peak | 468 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 5 | $ 0.30 | |
Description
General part information
KW1-521ABA
Display Modules - LED Character and Numeric Blue 7-Segment 1 Character Common Anode 2.9V 10mA 0.693" H x 0.488" W x 0.276" D (17.60mm x 12.40mm x 7.00mm) 10-DIP (0.579", 14.73mm)
