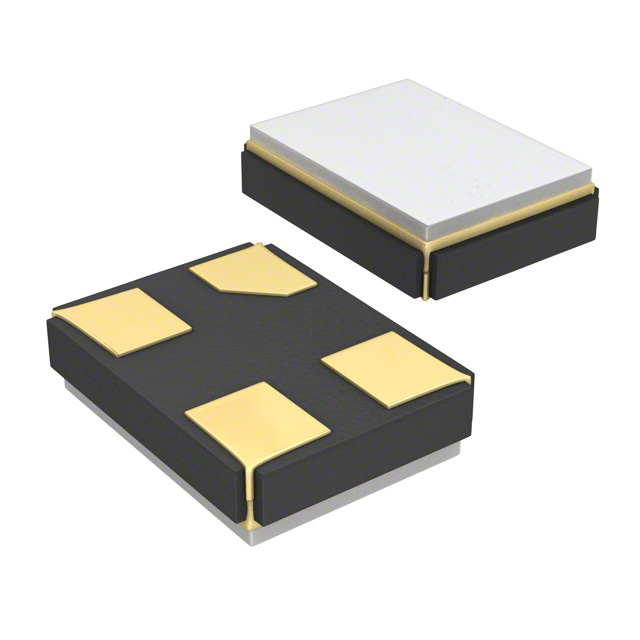

8Z-48.000MAHQ-T
ActiveTXC CORPORATION
2.5X2.0 SEAM SEAL MHZ QUARTZ XTAL -4PAD / CERAMIC, +/-30PPM @25C, +/-30PPM (-40 TO 85C), 10PF
Deep-Dive with AI
Search across all available documentation for this part.
8Z-48.000MAHQ-T
ActiveTXC CORPORATION
2.5X2.0 SEAM SEAL MHZ QUARTZ XTAL -4PAD / CERAMIC, +/-30PPM @25C, +/-30PPM (-40 TO 85C), 10PF
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 8Z-48.000MAHQ-T |
|---|---|
| ESR (Equivalent Series Resistance) | 60 Ohms |
| Frequency | 48 MHz |
| Frequency Stability | 30 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) [Max] [z] | 0.022 in |
| Height - Seated (Max) [Max] [z] | 0.55 mm |
| Load Capacitance | 10 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 0.098 " |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [y] | 2 mm |
| Size / Dimension [y] | 0.079 in |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
8Z-48.000MAHQ-T
48 MHz ±30ppm Crystal 10pF 60 Ohms 4-SMD, No Lead
