CC09M04M16-2731
ActiveSeltech

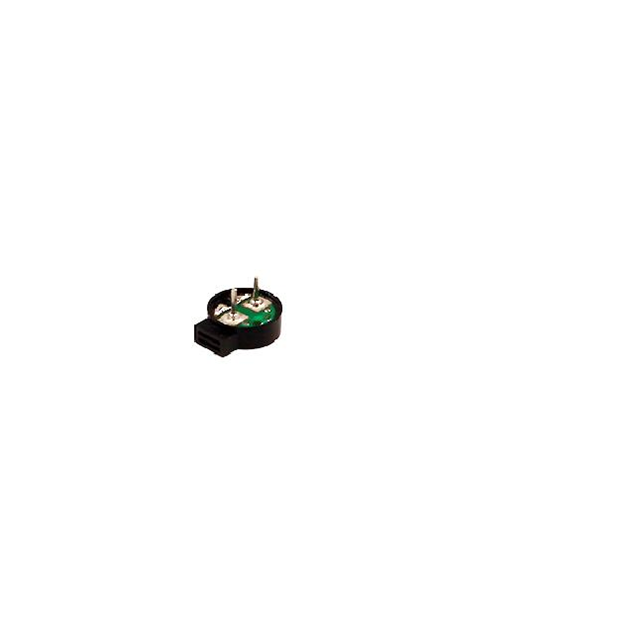

BUZZER MAGNETIC 3.6V 9MM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CC09M04M16-2731
ActiveSeltech
BUZZER MAGNETIC 3.6V 9MM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CC09M04M16-2731 |
|---|---|
| Current - Supply | 100 mA |
| Frequency | 2.731 kHz |
| Height - Seated (Max) [Max] | 0.157 in |
| Height - Seated (Max) [Max] | 4 mm |
| Input Type | Zero-Peak Signal |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Port Location | Side |
| Size / Dimension [diameter] | 9 mm |
| Size / Dimension [diameter] | 0.354 in |
| Sound Pressure Level (SPL) | 87 dB |
| Technology | Magnetic |
| Termination | Solder Pads |
| Voltage - Rated | 3.6 VDC |
| Voltage Range [Max] | 4.5 V |
| Voltage Range [Min] | 2.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 3.00 | |
| 5 | $ 2.75 | |||
| 10 | $ 2.25 | |||
| 20 | $ 2.00 | |||
| 100 | $ 1.90 | |||
Description
General part information
CC09M04M16-2731
Buzzers Magnetic 3.6 V 100mA 2.731kHz 87dB @ 3.6V, 10cm Surface Mount Solder Pads
Documents
Technical documentation and resources
