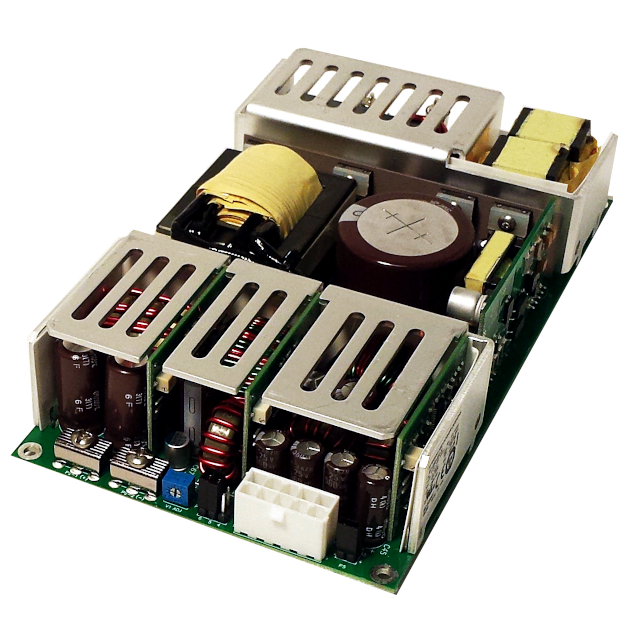

101184901
ActiveIntegrated Power Designs
AC/DC CONVERTER 5V 12V 400W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
101184901
ActiveIntegrated Power Designs
AC/DC CONVERTER 5V 12V 400W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 101184901 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | TUV, cURus, CE, UKCA |
| Current - Output 1 | 50 A |
| Current - Output 2 | 10 A |
| Current - Output 3 | 5 A |
| Efficiency | 87 % |
| Features | Remote Sense, Universal Input, Adjustable Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 3 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Size / Dimension [x] | 7 " |
| Size / Dimension [x] | 177.8 mm |
| Size / Dimension [y] | 4 " |
| Size / Dimension [y] | 101.6 mm |
| Size / Dimension [z] | 38 mm |
| Size / Dimension [z] | 1.5 " |
| Standard Number | 60601-1, 62368-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 240 VAC |
| Voltage - Input [Min] | 100 VAC |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 410.69 | |
| 25 | $ 380.29 | |||
| 100 | $ 354.16 | |||
Description
General part information
101184901
Open Frame AC DC Converters 3 Output 5V 12V 100 ~ 240 VAC Input
