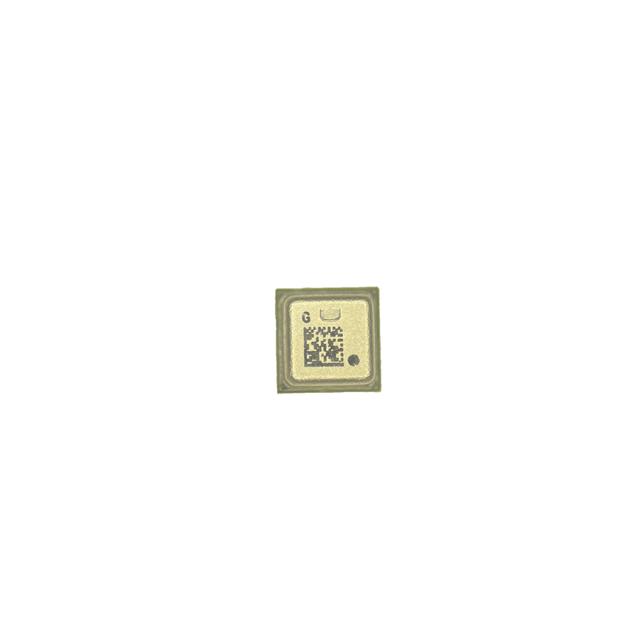

SPL07-003
ActiveGoertek Microelectronics Inc.
SENSOR 15.95PSI 10LGA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SPL07-003
ActiveGoertek Microelectronics Inc.
SENSOR 15.95PSI 10LGA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SPL07-003 |
|---|---|
| Accuracy | 3 % |
| Applications | Board Mount |
| Operating Pressure [Max] | 15.95 PSI |
| Operating Pressure [Max] | 110 kPa |
| Operating Pressure [Min] | 4.35 PSI |
| Operating Pressure [Min] | 30 kPa |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | I2C, SPI |
| Package / Case | 10-WFLGA Module |
| Port Style | No Port |
| Supplier Device Package | 10-LGA (2x2) |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.13 | |
| 5 | $ 0.99 | |||
| 10 | $ 0.94 | |||
| 25 | $ 0.89 | |||
| 50 | $ 0.85 | |||
| 100 | $ 0.81 | |||
| 500 | $ 0.73 | |||
| 1000 | $ 0.71 | |||
| 5000 | $ 0.65 | |||
| Digi-Reel® | 1 | $ 1.13 | ||
| 5 | $ 0.99 | |||
| 10 | $ 0.94 | |||
| 25 | $ 0.89 | |||
| 50 | $ 0.85 | |||
| 100 | $ 0.81 | |||
| 500 | $ 0.73 | |||
| 1000 | $ 0.71 | |||
| 5000 | $ 0.65 | |||
| Tape & Reel (TR) | 10000 | $ 0.54 | ||
Description
General part information
SPL07-003
Pressure Sensor 4.35PSI ~ 15.95PSI (30kPa ~ 110kPa) Absolute 10-WFLGA Module
