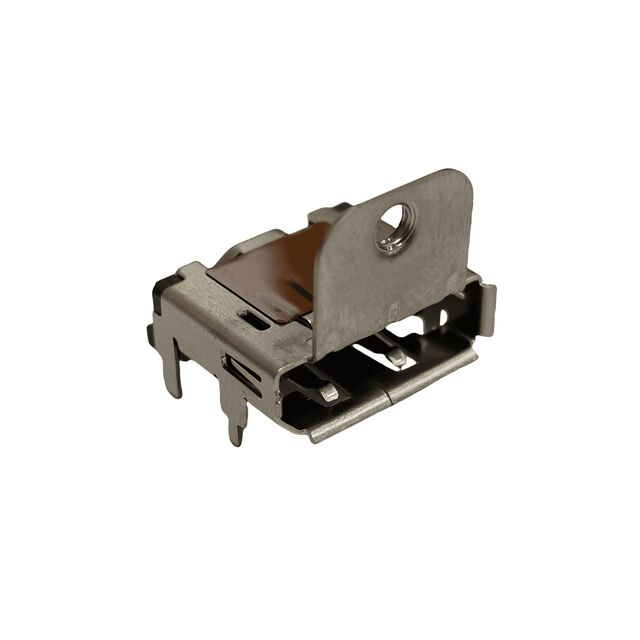

62220B04111
ActiveDLK Electronics
HDMI AF VT SMT TYPE H=13.0
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
62220B04111
ActiveDLK Electronics
HDMI AF VT SMT TYPE H=13.0
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 62220B04111 |
|---|---|
| Connector Type | DisplayPort |
| Contact Finish | Gold |
| Current Rating (Amps) | 0.5 A |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 10000 |
| Mounting Feature | Vertical |
| Mounting Type | Through Hole, Surface Mount, Right Angle |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shell/Shielding Material | Steel (SUS) |
| Shielding | Shielded |
| Specifications | Display Port 1.4 |
| Termination | PC Board, Solder |
| Voltage - Rated | 40 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 10 | $ 1.04 | |
| 20 | $ 1.00 | |||
| 50 | $ 0.97 | |||
| 100 | $ 0.93 | |||
| 200 | $ 0.86 | |||
Description
General part information
62220B04111
DisplayPort Display Port 1.4 Receptacle Connector 20 Position Surface Mount, Right Angle; Through Hole
