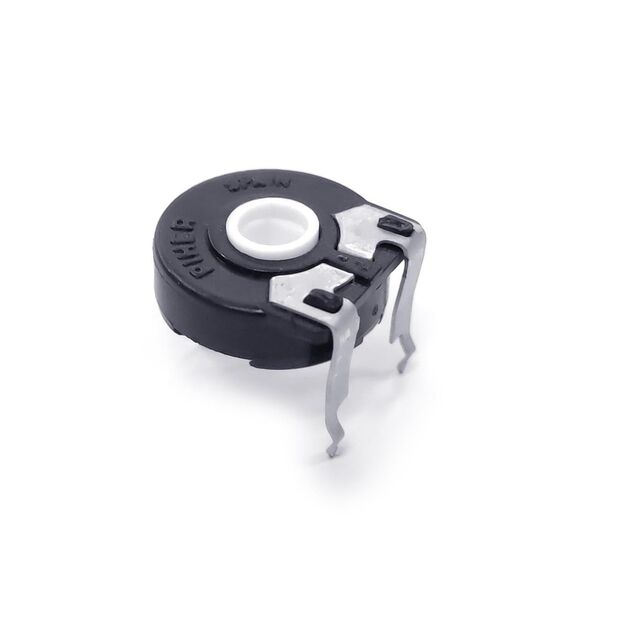

PT15GV22-222A2020-E-PM-S
ActiveAmphenol Piher Sensing Systems
TRIMMER 2.2KOHM 0.25W PC PIN TOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PT15GV22-222A2020-E-PM-S
ActiveAmphenol Piher Sensing Systems
TRIMMER 2.2KOHM 0.25W PC PIN TOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PT15GV22-222A2020-E-PM-S |
|---|---|
| Adjustment Type | Top Adjustment |
| Mounting Type | Through Hole |
| Number of Turns | 1 |
| Power (Watts) | 0.25 W |
| Power (Watts) | 250 mW |
| Resistance | 2200 Ohms |
| Resistive Material | Carbon |
| Size / Dimension [diameter] | 15 mm |
| Size / Dimension [diameter] | 0.591 in |
| Temperature Coefficient | 300 ppm/°C |
| Termination Style | PC Pins |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.13 | |
| 10 | $ 0.91 | |||
| 25 | $ 0.83 | |||
| 50 | $ 0.78 | |||
| 100 | $ 0.73 | |||
| 250 | $ 0.67 | |||
| 500 | $ 0.62 | |||
| 1000 | $ 0.58 | |||
| 5000 | $ 0.50 | |||
Description
General part information
PT15GV22-222A2020-E-PM-S
2.2 kOhms 0.25W, 1/4W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Top Adjustment
