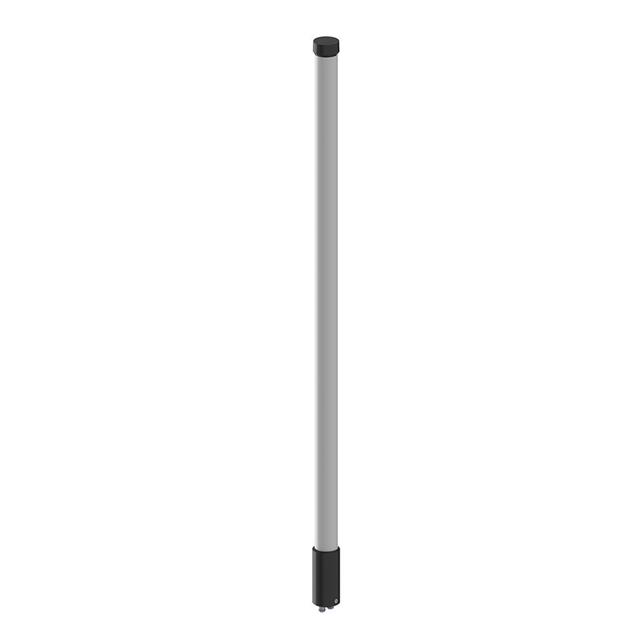

BS450XL3-C
ActiveMobile Mark Antenna Solutions
UHF OMNI BASE STATION ANTENNA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BS450XL3-C |
|---|---|
| Antenna Type | Fiberglass Radome |
| Applications | Heavy Duty, LMR Base Station, High Power |
| Frequency (Center/Band) | 460 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 470 MHz |
| Frequency Range [Min] | 450 MHz |
| Gain | 3 dBi |
| Height (Max) | 914.4 mm |
| Height (Max) [Max] | 36 in |
| Ingress Protection | IP67 |
| Mounting Type | Pole, Wall Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 250 W |
| RF Family/Standard | UHF |
| Termination | N Type Female |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 137.15 | |
Description
General part information
BS450XL3-C
RF ANTENNA LMR Base Station, High Power, Heavy Duty Fiberglass Radome N Type Female Pole, Wall Mount
