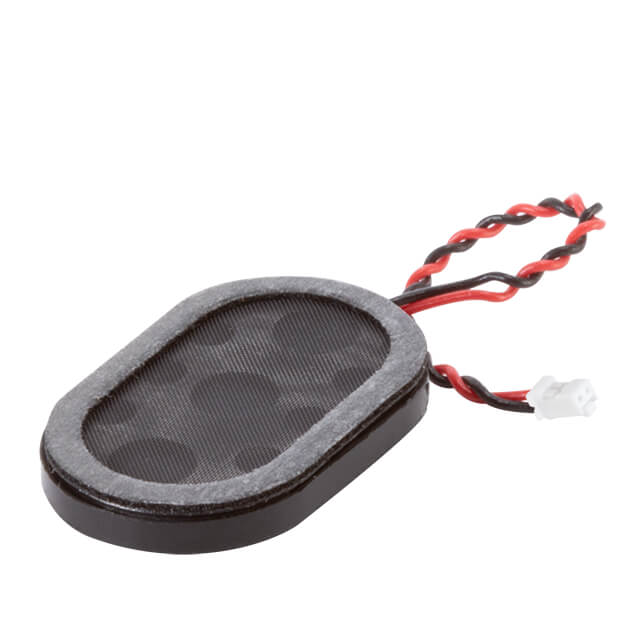

CMS-241535-078L65
ActiveCUI Devices
24X15MM OVAL, .7W, 8, 850HZ
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CMS-241535-078L65
ActiveCUI Devices
24X15MM OVAL, .7W, 8, 850HZ
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CMS-241535-078L65 |
|---|---|
| Distortion Rating | 15 % |
| Efficiency - dBA | 95 dBA |
| Efficiency - Testing | 700 mW, 100 mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 850 Hz |
| Height - Seated (Max) [Max] [z] | 3.5 mm |
| Height - Seated (Max) [Max] [z] | 0.138 in |
| Impedance | 8 Ohms |
| Material - Cone | Polyethylene Naphthalate (PEN) |
| Material - Magnet | Nd-Fe-B |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -25 °C |
| Port Location | Top |
| Power - Max [Max] | 1 W |
| Power - Rated | 700 mW |
| Shape | Oval, Rectangular Frame |
| Size / Dimension [x] | 24 mm |
| Size / Dimension [x] | 0.945 in |
| Size / Dimension [y] | 15 mm |
| Size / Dimension [y] | 0.591 in |
| Technology | Magnetic |
| Termination | Wire Leads |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.38 | |
| 10 | $ 1.15 | |||
| 25 | $ 1.07 | |||
| 40 | $ 1.00 | |||
| 80 | $ 0.94 | |||
| 440 | $ 0.81 | |||
| 1080 | $ 0.76 | |||
| 5400 | $ 0.74 | |||
Description
General part information
CMS-241535-078L65
8 Ohms General Purpose Speaker 700 mW 680 Hz ~ 20 kHz Top Oval, Rectangular Frame
