950-D-SMD-DS/03
ActiveWECO Electrical Connectors Inc.
SURFACE MOUNT TERMINAL BLOCK; 3
Deep-Dive with AI
Search across all available documentation for this part.
950-D-SMD-DS/03
ActiveWECO Electrical Connectors Inc.
SURFACE MOUNT TERMINAL BLOCK; 3
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 950-D-SMD-DS/03 |
|---|---|
| Clamp Material - Plating | Bronze, Tin |
| Color | Black |
| Contact Material - Plating [custom] | Brass - Tin Plated |
| Current | 15 A |
| Housing Material | Polyamide (PA), Nylon |
| Mating Orientation | Vertical with Board |
| Mounting Type | Surface Mount |
| Number of Levels | 1 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Positions Per Level | 3 |
| Screw Material - Plating | Steel, Zinc Plated |
| Screw Thread | M2.6 |
| Torque - Screw | 0.4 Nm |
| Torque - Screw | 3.5 Lb-In |
| Voltage | 300 V |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 14 AWG |
| Wire Termination | Screw - Leaf Spring, Wire Guard |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.69 | |
| 10 | $ 1.68 | |||
| 25 | $ 1.48 | |||
| 50 | $ 1.37 | |||
| 100 | $ 1.29 | |||
| 250 | $ 1.22 | |||
| 500 | $ 1.17 | |||
| 1000 | $ 1.14 | |||
| 5000 | $ 1.10 | |||
Description
General part information
950-D-SMD-DS/03

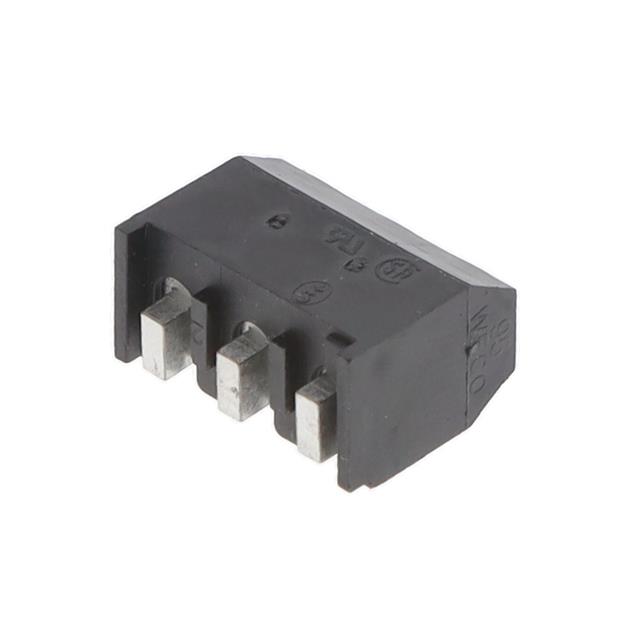

3 Position Wire to Board Terminal Block Vertical with Board 0.197" (5.00mm) Surface Mount
