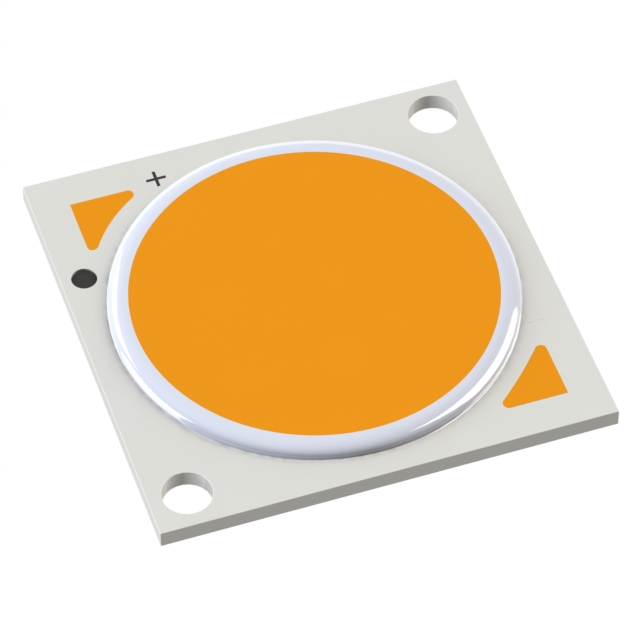

CXM-18-35-95-36-AA40-F5-2
ActiveLuminus Devices Inc.
GENERATION 4 STANDARD COB PRODUC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CXM-18-35-95-36-AA40-F5-2
ActiveLuminus Devices Inc.
GENERATION 4 STANDARD COB PRODUC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CXM-18-35-95-36-AA40-F5-2 |
|---|---|
| CCT (K) | 3500 K |
| Color | White, Warm |
| Configuration | Square |
| CRI (Color Rendering Index) | 95 |
| Current - Max [Max] | 2.5 A |
| Current - Test | 800 mA |
| Height [z] | 1.37 mm |
| Lens Type | Flat |
| Light Emitting Surface (LES) [diameter] | 17.5 mm |
| Lumens/Watt @ Current - Test | 127 lm/W |
| Luminous Flux @ Current/Temperature | 3395 lm |
| Size / Dimension [x] | 21.5 mm |
| Size / Dimension [y] | 21.5 mm |
| Temperature - Test | 85 °C |
| Type | Chip On Board (COB) |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 33.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 180 | $ 12.37 | |
Description
General part information
CXM-18-35-95-36-AA40-F5-2
LED Lighting COBs Engines Modules Chip On Board (COB) CXM-18 Gen 4 White, Warm Square
