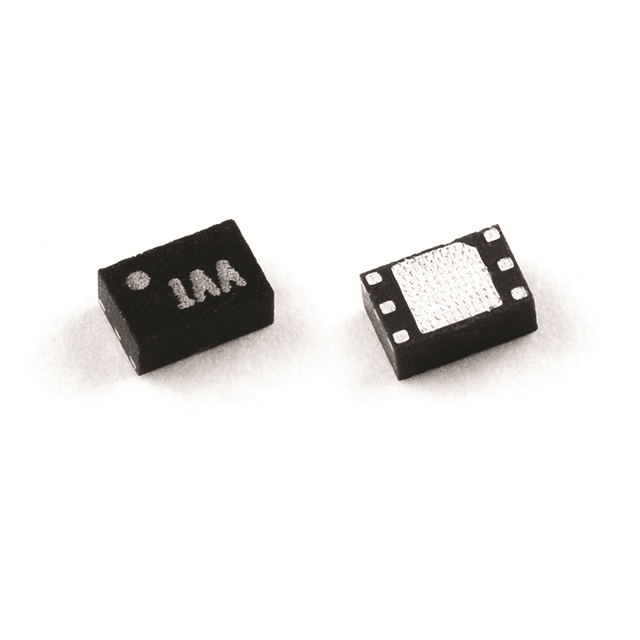

AM1063-2
ActiveAtlanta Micro Inc.
IC RF AMP GPS 0HZ-10GHZ 6DFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AM1063-2
ActiveAtlanta Micro Inc.
IC RF AMP GPS 0HZ-10GHZ 6DFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AM1063-2 |
|---|---|
| Current - Supply | 74 mA |
| Frequency [Max] | 10 GHz |
| Frequency [Min] | 0 Hz |
| Gain | 15 dB |
| Mounting Type | Surface Mount |
| Noise Figure | 2.5 dB |
| P1dB | 18 dBm |
| Package / Case | 6-VFDFN Exposed Pad |
| RF Type | General Purpose |
| Supplier Device Package | 6-DFN (1.3x2) |
| Voltage - Supply [Max] | 5.2 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 28.56 | |
| 10 | $ 26.36 | |||
| 25 | $ 24.16 | |||
| 100 | $ 22.33 | |||
| 250 | $ 21.24 | |||
| 500 | $ 19.77 | |||
| Digi-Reel® | 1 | $ 28.56 | ||
| 10 | $ 26.36 | |||
| 25 | $ 24.16 | |||
| 100 | $ 22.33 | |||
| 250 | $ 21.24 | |||
| 500 | $ 19.77 | |||
| Tape & Reel (TR) | 10000 | $ 18.13 | ||
Description
General part information
AM1063-2
RF Amplifier IC General Purpose 0Hz ~ 10GHz 6-DFN (1.3x2)
