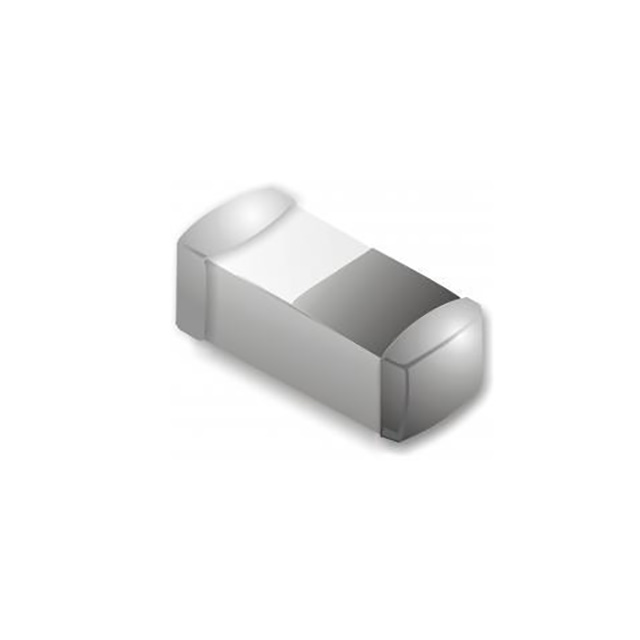

HBLS1005-5N6S_M
ActiveMax Echo
FIXED IND 5.6NH 300MA 260MOHM SM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HBLS1005-5N6S_M
ActiveMax Echo
FIXED IND 5.6NH 300MA 260MOHM SM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HBLS1005-5N6S_M |
|---|---|
| Current Rating (Amps) | 300 mA |
| DC Resistance (DCR) [Max] | 260 mOhm |
| Frequency - Self Resonant | 5.3 GHz |
| Height - Seated (Max) [Max] [z] | 0.022 in |
| Height - Seated (Max) [Max] [z] | 0.55 mm |
| Inductance | 5.6 nH |
| Inductance Frequency - Test | 100 MHz |
| Material - Core | Ceramic |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0402 (1005 Metric) |
| Q @ Freq | 8 |
| Shielding | Unshielded |
| Size / Dimension [x] | 1 mm |
| Size / Dimension [x] | 0.039 in |
| Size / Dimension [y] | 0.02 in |
| Size / Dimension [y] | 0.5 mm |
| Supplier Device Package | 0402 (1005 Metric) |
| Tolerance | 0.3 nH |
| Type | Multilayer |
