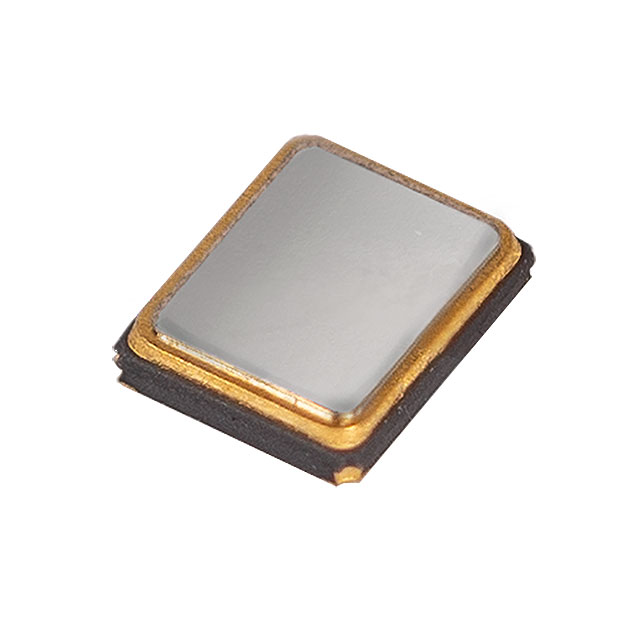

SA164320F15HKR
ActiveTusonix a Subsidiary of CTS Electronic Components
CRYSTAL 32.0000MHZ 8PF SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SA164320F15HKR
ActiveTusonix a Subsidiary of CTS Electronic Components
CRYSTAL 32.0000MHZ 8PF SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SA164320F15HKR |
|---|---|
| ESR (Equivalent Series Resistance) | 150 Ohms |
| Frequency | 32 MHz |
| Frequency Stability | 50 ppm |
| Frequency Tolerance | 10 ppm |
| Height - Seated (Max) [Max] | 0.016 in |
| Height - Seated (Max) [Max] | 0.4 mm |
| Load Capacitance | 8 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4-SMD, No Lead |
| Ratings | AEC-Q200 |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [x] | 0.063 in |
| Size / Dimension [y] | 0.047 in |
| Size / Dimension [y] | 1.2 mm |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.67 | |
Description
General part information
SA164320F15HKR
32 MHz ±10ppm Crystal 8pF 150 Ohms 4-SMD, No Lead
