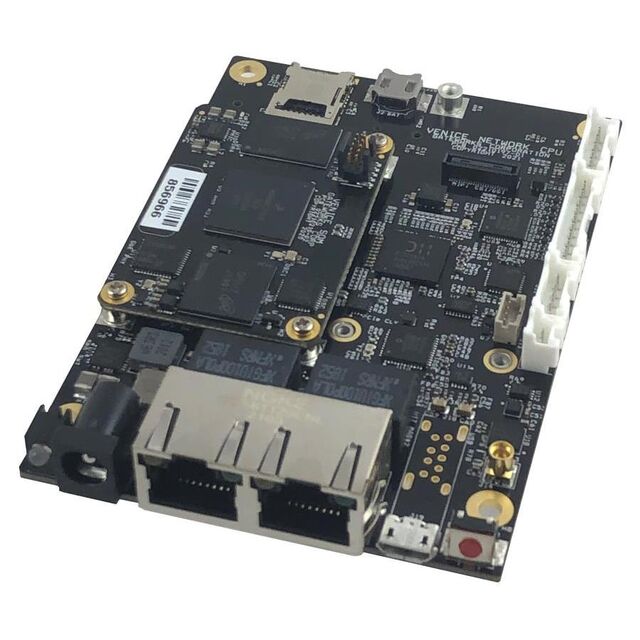

GW7201-01

Active

Gateworks Corporation

SINGLE BOARD COMPUTER, ARM CORTEX-A53 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Gateworks Corporation

SINGLE BOARD COMPUTER, ARM CORTEX-A53 ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	GW7201-01

Core Processor	ARM® Cortex®-A53, i.MX8M Mini Quad
Ethernet	GbE (2)
Expansion Site/Bus	M.2, I2S, microSD, SIM, Mini-PCIe, I2C, SPI
Number of Cores	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	3.9 W
RAM Capacity/Installed	0 GB, 1 GB
Size / Dimension [x]	100 mm
Size / Dimension [x]	3.937 in
Size / Dimension [y]	2.756 in
Size / Dimension [y]	70 mm
Speed	1.6 GHz
Storage Interface	microSD, Mini PCIe, eMMC, SPI
USB	USB 2.0 (1)
Video Outputs	MIPI-DSI, I²S, MIPI-CSI, TTL
Watchdog Timer	True

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Box (TB)	1	$ 616.00
Newark	Each	1	$ 640.64

General part information

Single Board Computer 1.6GHz 4 Core 1GB/0GB RAM ARM® Cortex®-A53, i.MX8M Mini Quad

Technical documentation and resources

No documents available
