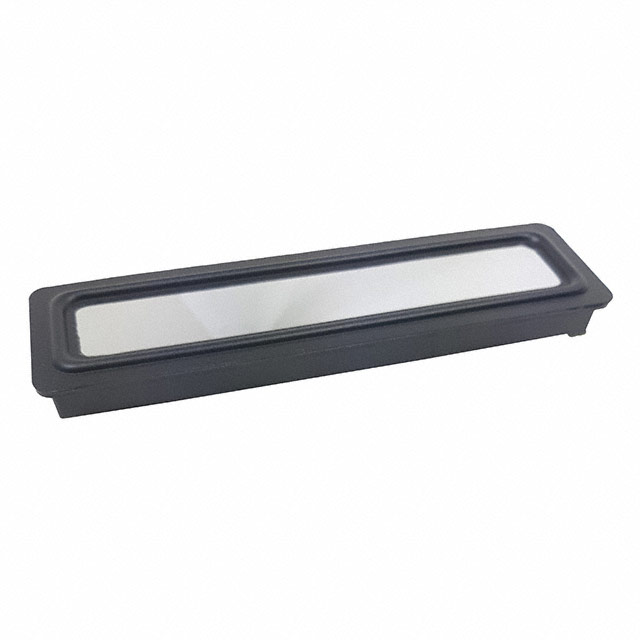

BGF-46166-18-4-003
ActiveGlass Acoustic Innovations Co. Ltd.
SPEAKER 3.4OHM 35W TOP PORT 75DB
Deep-Dive with AI
Search across all available documentation for this part.
BGF-46166-18-4-003
ActiveGlass Acoustic Innovations Co. Ltd.
SPEAKER 3.4OHM 35W TOP PORT 75DB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BGF-46166-18-4-003 |
|---|---|
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 90 Hz |
| Height - Seated (Max) [Max] | 18 mm |
| Height - Seated (Max) [Max] [z] | 0.709 " |
| Impedance | 3.4 Ohms |
| Material - Cone | Glass Composite, Aluminum Composite |
| Material - Magnet | Nd-Fe-B |
| Port Location | Top |
| Power - Max [Max] | 180 W |
| Power - Rated | 35 W |
| Shape | Oval, Rectangular Frame |
| Technology | Magnetic |
| Termination | Solder Pads |
| Type | Woofer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 45.23 | |
| 10 | $ 36.93 | |||
| 25 | $ 34.10 | |||
| 50 | $ 32.11 | |||
| 100 | $ 32.06 | |||
Description
General part information
BGF-46166-18-4-003
3.4 Ohms Woofer Speaker 35 W Top Oval, Rectangular Frame
