PL519M-1RG1213-2
ActiveP-tec
5MM LED PMI SNAP-IN R/G BI-CLR 6
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PL519M-1RG1213-2
ActiveP-tec
5MM LED PMI SNAP-IN R/G BI-CLR 6
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PL519M-1RG1213-2 |
|---|---|
| Lamp Color | Green, Red |
| Lens Color | White |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating [custom] | 35 mcd |
| Millicandela Rating [custom] | 34 mcd |
| Panel Cutout Dimensions | 7.2 mm |
| Panel Cutout Dimensions | 0.28 in |
| Panel Cutout Shape | Round |
| Type | LED |
| Viewing Angle | 70 ° |
| Voltage | 2.1 V, 2.1 V |
| Wavelength - Peak | 567 nm, 635 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.00 | |
| 10 | $ 2.75 | |||
| 25 | $ 2.50 | |||
| 50 | $ 2.25 | |||
| 100 | $ 2.15 | |||
Description
General part information
PL519M-1RG1213-2

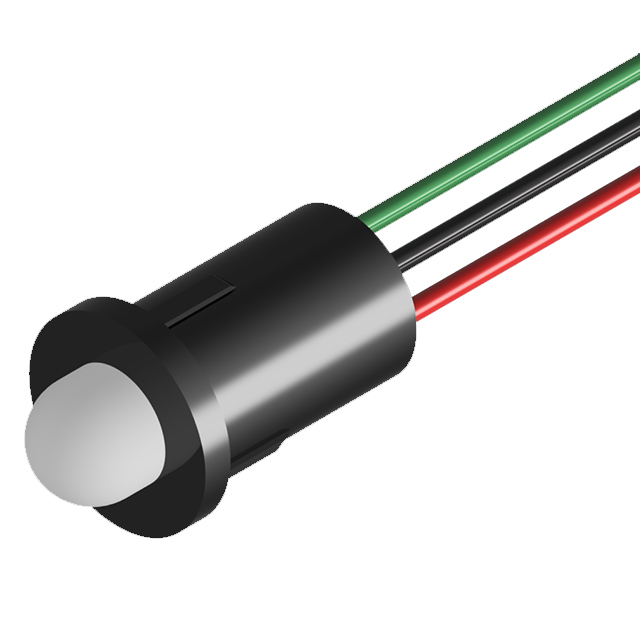

LED Panel Indicator Green, Red Diffused 70° 2.1V Green, 2.1V Red Wire Leads - 6" (152.40mm)
Documents
Technical documentation and resources
