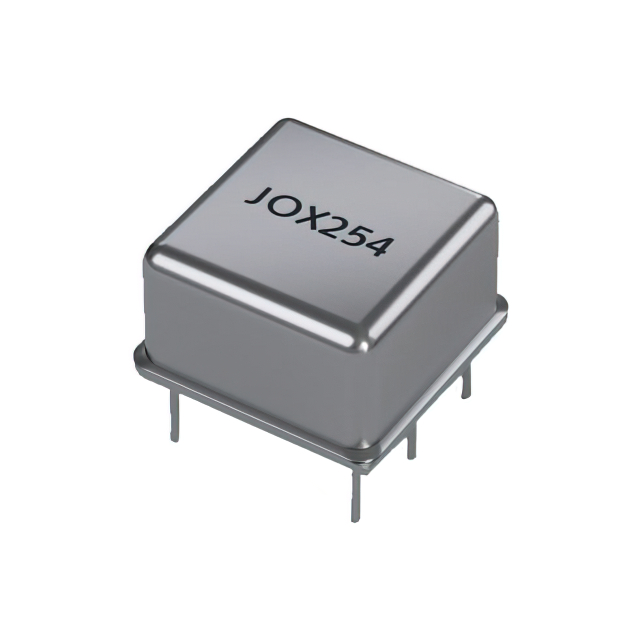

O 25.0-JOX254H-5-H-K-KCBI-LF
ActiveJauch Quartz
XTAL OSC OCXO 25.000MHZ HCMOS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
O 25.0-JOX254H-5-H-K-KCBI-LF
ActiveJauch Quartz
XTAL OSC OCXO 25.000MHZ HCMOS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | O 25.0-JOX254H-5-H-K-KCBI-LF |
|---|---|
| Current - Supply (Max) [Max] | 200 mA |
| Frequency | 25 MHz |
| Frequency Stability | 10 ppb |
| Height - Seated (Max) [Max] | 14.2 mm |
| Height - Seated (Max) [Max] | 0.559 in |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | HCMOS |
| Package / Case | 6-DIP |
| Package / Case | 19.05 mm, 0.75 in, 5 Leads |
| Size / Dimension [x] | 1 in |
| Size / Dimension [x] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Type | OCXO |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 130.47 | |
| 10 | $ 115.00 | |||
Description
General part information
O 25.0-JOX254H-5-H-K-KCBI-LF
25 MHz OCXO HCMOS Oscillator 5V 6-DIP (0.750", 19.05mm), 5 Leads
