77012J
ActiveCully-Minerallac
10X3/4 HWH SMS SLOT/PHIL ZP. SIZ
Deep-Dive with AI
Search across all available documentation for this part.
77012J
ActiveCully-Minerallac
10X3/4 HWH SMS SLOT/PHIL ZP. SIZ
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 77012J |
|---|---|
| Drive Type | Combination |
| Head Diameter [diameter] | 7.93 mm |
| Head Diameter [diameter] | 0.312 " |
| Head Diameter [diameter] | 0.3125 " |
| Head Height | 8.64 mm |
| Head Height | 0.34 in |
| Length - Below Head | 0.75 " |
| Length - Below Head | 19.05 mm |
| Length - Below Head | 0.75 " |
| Length - Overall [x] | 1.09 in |
| Length - Overall [x] | 27.69 mm |
| Plating | Zinc |
| Screw Head Type | Hex Head |
| Thread Size | #10-16 |
| Type | Sheet Metal Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 0.05 | |
Description
General part information
77012J

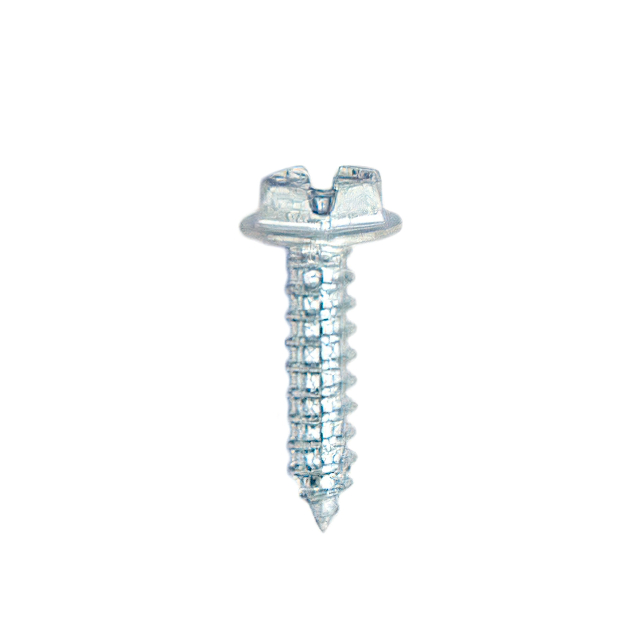

#10-16 Hex Head Sheet Metal Screw Combination Drive Steel
Documents
Technical documentation and resources
No documents available
