1000570040
UnknownMolex - Temp Flex
CBL RIBN 60COND 0.05 BLUE 5'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1000570040
UnknownMolex - Temp Flex
CBL RIBN 60COND 0.05 BLUE 5'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1000570040 |
|---|---|
| Cable Type | Flat Cable |
| Conductor Material | Copper, Silver Coated |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 36 AWG |
| First Conductor Mark | Blue |
| Jacket (Insulation) Material | Fluorinated Ethylene-Propylene (FEP) |
| Jacket Color | Blue |
| Length | 25 ft |
| Length | 7.62 m |
| Number of Conductors | 60 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
| Ratings | UL Style 20424 |
| Ribbon Width | 76.2 mm |
| Ribbon Width | 3 in |
| Shielding | Unshielded |
| Voltage | 300 V |
| Wire Gauge | 28 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1000570040

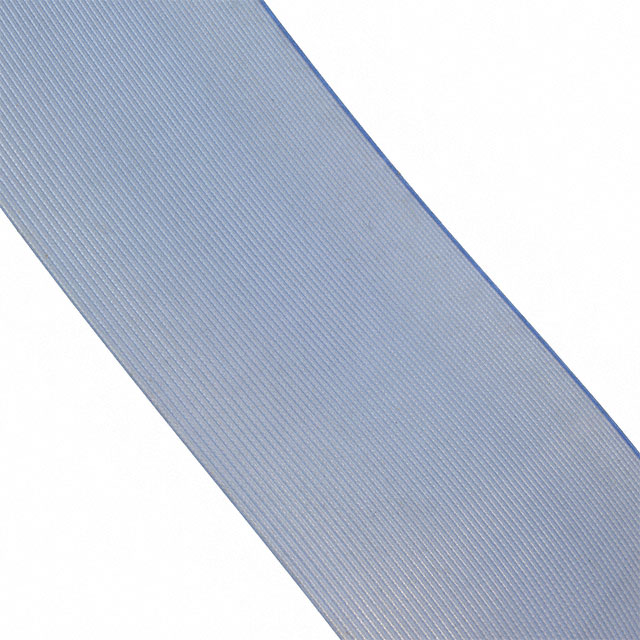

Flat Ribbon Cable Blue 60 Conductors 0.050" (1.27mm) Flat Cable 5.0' (1.52m)
