099171
ActiveDVTEST

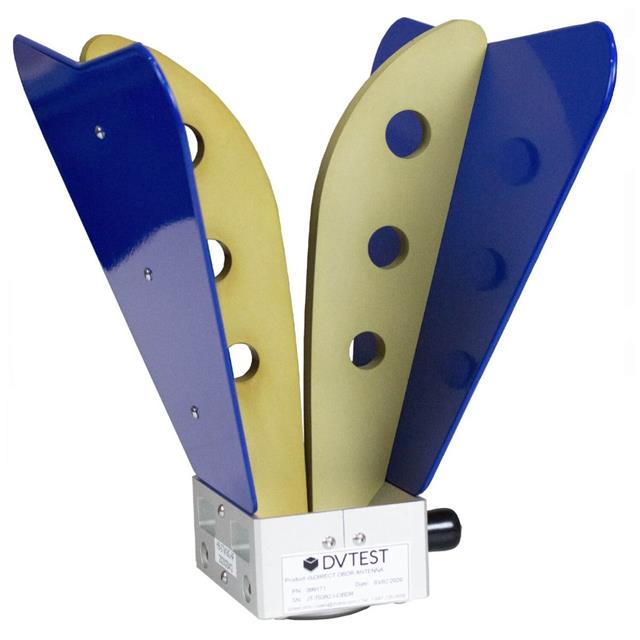

BROADBAND HORN ANT 0.7-18GHZ
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
099171
ActiveDVTEST
BROADBAND HORN ANT 0.7-18GHZ
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 099171 |
|---|---|
| Antenna Type | Module |
| Applications | 3G, Bluetooth, 5G, 4G, GSM, LTE, WiMax, GPS, Wi-Fi, LoRa |
| Frequency (Center/Band) | 9.35 GHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 18 GHz |
| Frequency Range [Min] | 700 MHz |
| Gain | 17 dBi |
| Height (Max) [Max] | 273.05 mm |
| Height (Max) [Max] | 10.75 in |
| Mounting Type | Base Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 500 W |
| RF Family/Standard | Cellular, WiFi |
| Termination | N Type Female |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2800.00 | |
| 5 | $ 2700.00 | |||
| 10 | $ 2600.00 | |||
| 25 | $ 2525.00 | |||
Description
General part information
099171
9.35GHz 3G, 4G, 5G, Bluetooth, GPS, GSM, LoRa, LTE, Wi-Fi, WiMax Module RF Antenna 700MHz ~ 18GHz 17dBi N Type Female Base Mount
