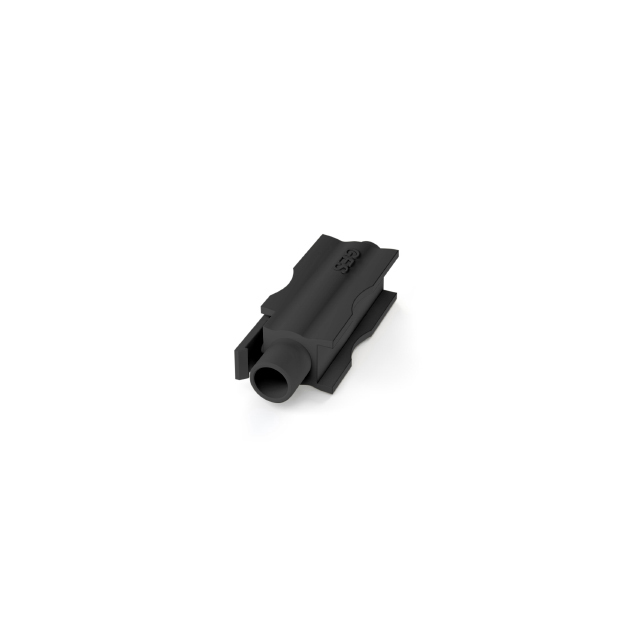

5000454
ActiveGES High Voltage
VP-CL-1HV-ST AWG 14 AG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5000454
ActiveGES High Voltage
VP-CL-1HV-ST AWG 14 AG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5000454 |
|---|---|
| Cable Opening [custom] | 0.157 in |
| Cable Opening [custom] | 4 mm |
| Color | Black |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Silver |
| Current Rating (Amps) | 13 A |
| Fastening Type | Latch Lock |
| Features | Heat Shrink, High Voltage Connector |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line), Cable Mount |
| Number of Positions | 1 |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Polybutylene Terephthalate (PBT) |
| Shielding | Unshielded |
| Termination | Solder, Crimp |
| Voltage Rating | 13000 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 5 | $ 21.73 | |
| 10 | $ 20.64 | |||
| 25 | $ 19.56 | |||
| 50 | $ 18.47 | |||
| 100 | $ 17.38 | |||
| 250 | $ 16.30 | |||
Description
General part information
5000454
1 Position Circular Connector Plug, Male Pins Crimp, Solder
