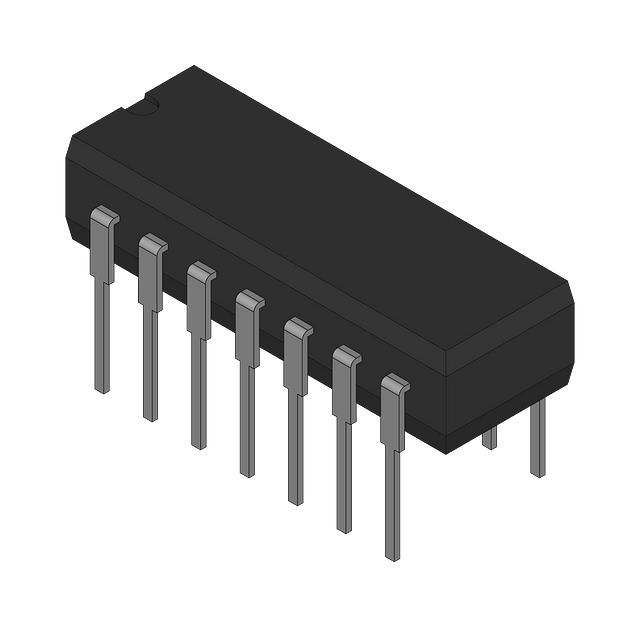

74AC32PC

Obsolete

ON Semiconductor

IC GATE OR 4CH 2-INP 14MDIP

Search across all available documentation for this part.

Obsolete

ON Semiconductor

IC GATE OR 4CH 2-INP 14MDIP

Technical Specifications

Parameters and characteristics for this part

Specification	74AC32PC

Current - Output High, Low	24 mA
Input Logic Level - High [Max]	3.85 V
Input Logic Level - High [Min]	2.1 V
Input Logic Level - Low [Max]	1.65 V
Input Logic Level - Low [Min]	0.9 V
Logic Type	OR Gate
Max Propagation Delay @ V, Max CL	7.5 ns
Mounting Type	Through Hole
Number of Circuits	4
Number of Inputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	14-DIP
Package / Case [x]	0.3 "
Package / Case [y]	7.62 mm
Supplier Device Package	14-DIP
Voltage - Supply [Max]	6 V
Voltage - Supply [Min]	2 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

OR Gate IC 4 Channel 14-MDIP
