H2M1W031129900
ActiveUnictron Technologies Corporation
ANTENNA MODULE NB40DG; GPS(L1+L5
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
H2M1W031129900
ActiveUnictron Technologies Corporation
ANTENNA MODULE NB40DG; GPS(L1+L5
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H2M1W031129900 |
|---|---|
| Antenna Type | Ceramic Patch |
| Applications | GPS, GLONASS |
| Features | Cable - 83.5mm, LNA |
| Frequency (Center/Band) | 1.176 GHz, 1.575 GHz, 1.602 GHz |
| Frequency Group | UHF |
| Frequency Group [Max] | 2 GHz |
| Frequency Group [Min] | 1 GHz |
| Gain | 3.9 dBi, 4.8 dBi, 2.7 dBi |
| Height (Max) [Max] [z] | 0.423 in |
| Height (Max) [Max] [z] | 10.75 mm |
| Mounting Type | Adhesive |
| Number of Bands | 3 |
| Return Loss | -10 dB |
| RF Family/Standard | Navigation |
| Termination | I-PEX |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 19.09 | |
| 10 | $ 17.54 | |||
| 25 | $ 16.82 | |||
| 100 | $ 14.82 | |||
| 250 | $ 14.09 | |||
| 500 | $ 13.18 | |||
Description
General part information
H2M1W031129900

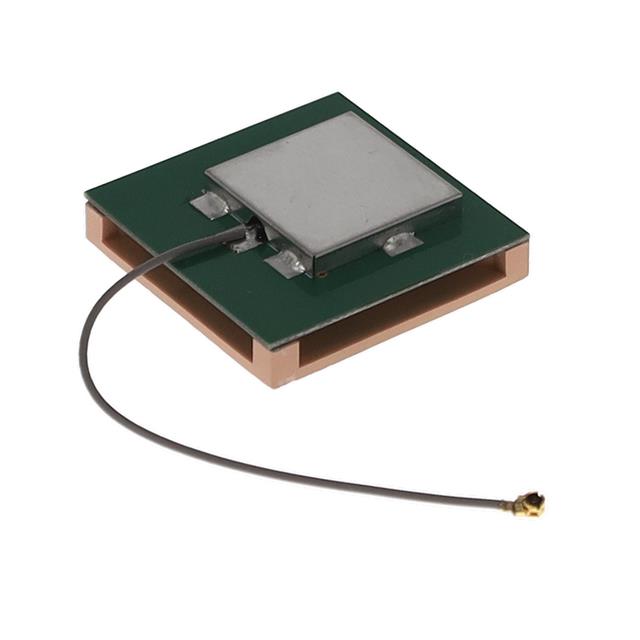

RF ANTENNA GLONASS, GPS Ceramic Patch I-PEX Adhesive
