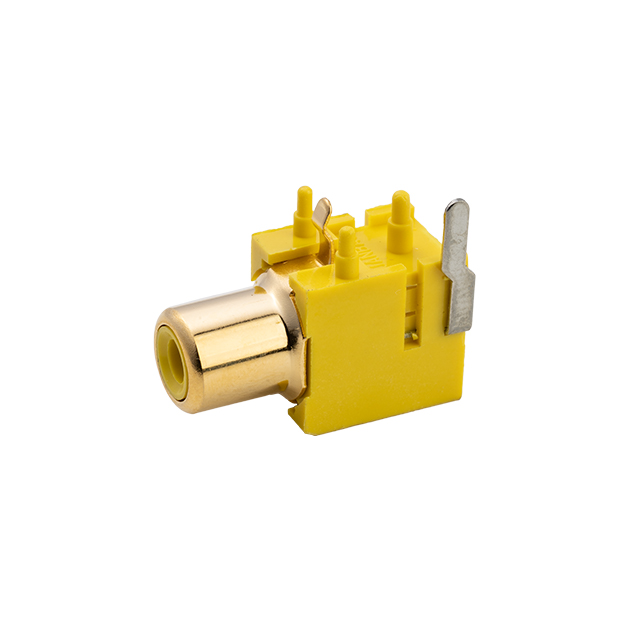

RH103430Y02GNL
ActiveRDI, Inc.
CONN RCA F 3 POS SOLDER RA THRU-HOLE 4 TERMINAL 1 PORT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RH103430Y02GNL |
|---|---|
| Actual Diameter [diameter] | 0.134 in |
| Actual Diameter [diameter] | 3.4 mm |
| Body Material | Brass |
| Connector Type | Phono (RCA) Jack |
| Contact Material | Phosphor Bronze |
| Contact Material - Plating [custom] | Gold |
| Gender | Female |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Insulation Color | Yellow |
| Internal Switch(s) | False |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions/Contacts [custom] | 2 |
| Number of Positions/Contacts [custom] | 2 |
| Shielding | Unshielded |
| Signal Lines | Mono |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 80 | $ 0.57 | |
| 240 | $ 0.49 | |||
| 560 | $ 0.43 | |||
| 1520 | $ 0.38 | |||
| 3000 | $ 0.34 | |||
Description
General part information
RH103430Y02GNL
Phono (RCA) Jack Mono Connector Solder
