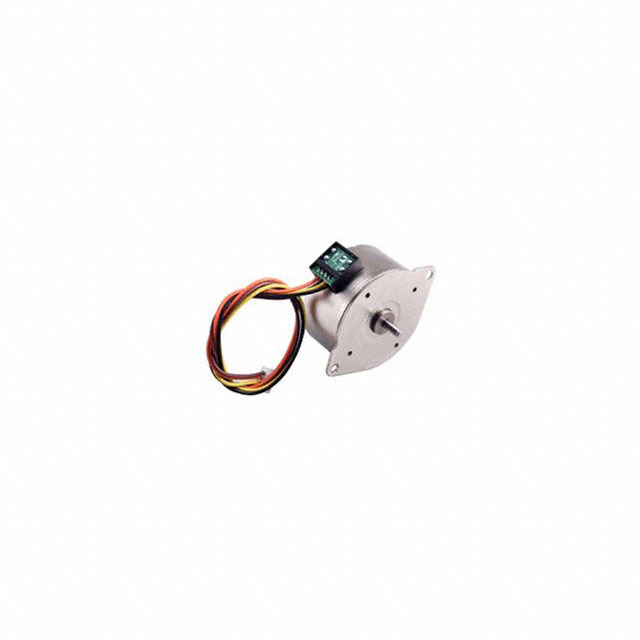

PM42L-075-055
ActiveLIN ENGINEERING
PERMANENT MAGNET STEPPER MOTOR
Deep-Dive with AI
Search across all available documentation for this part.
PM42L-075-055
ActiveLIN ENGINEERING
PERMANENT MAGNET STEPPER MOTOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PM42L-075-055 |
|---|---|
| Coil Resistance | 7 Ohms |
| Coil Type | Bipolar |
| Current Rating (Amps) | 0.55 A |
| Diameter - Shaft [diameter] | 3 mm |
| Diameter - Shaft [diameter] | 0.118 in |
| Length - Shaft and Bearing [x] | 0.394 in |
| Length - Shaft and Bearing [x] | 10 mm |
| Mounting Hole Spacing | 49.5 mm |
| Mounting Hole Spacing | 1.949 in |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 C |
| Rotor Inertia | 11.6 gcm² |
| Size / Dimension [diameter] | 42 mm |
| Size / Dimension [diameter] | 1.65 in |
| Step Angle | 7.5 ° |
| Torque - Holding (oz-in / mNm) | 13.2 oz-in |
| Torque - Holding (oz-in / mNm) | 93.21 mNm |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 30.00 | |
| 5 | $ 27.57 | |||
| 10 | $ 26.21 | |||
Description
General part information
PM42L-075-055
Bipolar Stepper Motor Frame Size 48.0 Step 0.55 A 24VDC
