CC-CN-23-0123
ActiveCoolCAD

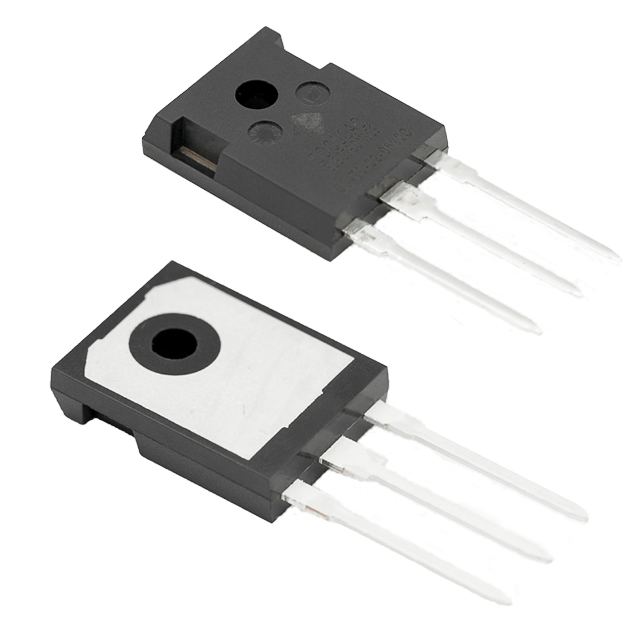

SIC MOSFET 20A 1200V TO-247-3
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CC-CN-23-0123 |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 20 A |
| Input Capacitance (Ciss) (Max) @ Vds [Max] | 810 pF |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 175 °C |
| Operating Temperature [Min] | -40 C |
| Package / Case | TO-247-3 |
| Rds On (Max) @ Id, Vgs | 85 mOhm |
| Supplier Device Package | TO-247-3 |
| Vgs(th) (Max) @ Id | 2.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 5 | $ 9.00 | |
| 10 | $ 8.00 | |||
| 100 | $ 7.00 | |||
Description
General part information
CC-CN-23-0123
20A (Ta) Through Hole TO-247-3
