AX97-408R2
ActiveTRIAD MAGNETICS
SMD INDUCTOR 8.2ΜH @ 7.00A ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
AX97-408R2
ActiveTRIAD MAGNETICS
SMD INDUCTOR 8.2ΜH @ 7.00A ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AX97-408R2 |
|---|---|
| Current Rating (Amps) | 7 A |
| DC Resistance (DCR) | 20 mOhm |
| Height - Seated (Max) [Max] | 7.21 mm |
| Height - Seated (Max) [Max] | 0.284 " |
| Inductance | 8.2 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension [x] | 16.1 mm |
| Size / Dimension [x] | 0.634 " |
| Size / Dimension [y] | 0.622 " |
| Size / Dimension [y] | 15.8 mm |
| Supplier Device Package | SMD |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
AX97-408R2

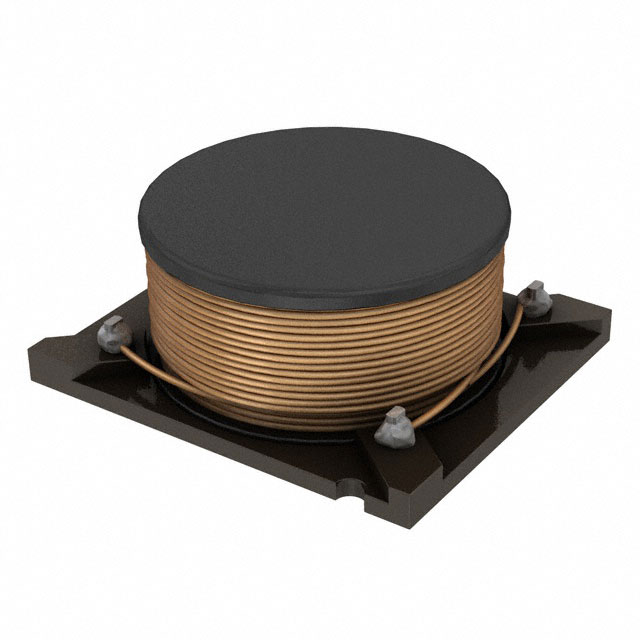

8.2 µH Unshielded Drum Core, Wirewound Inductor 7 A 20mOhm Max Nonstandard
