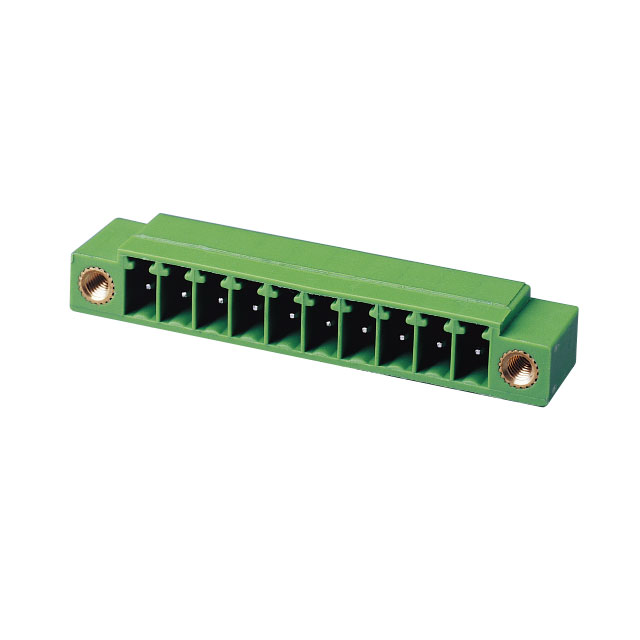

ECH350RM-10P
ActiveDinkle Corporation, USA
TERM BLK 10POS 3.50MM HDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ECH350RM-10P |
|---|---|
| Color | Green |
| Contact Mating Finish | Tin |
| Current - IEC | 14 A |
| Current - UL | 8 A |
| Features | Mating Flange |
| Header Orientation | 90°, Right Angle |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 10 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 3.5 mm |
| Pitch [x] | 0.138 in |
| Positions Per Level | 10 |
| Termination Style | Solder |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Voltage - IEC | 320 V |
| Voltage - UL | 300 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.07 | |
| 10 | $ 3.05 | |||
| 50 | $ 2.65 | |||
| 100 | $ 2.44 | |||
| 300 | $ 2.24 | |||
| 500 | $ 2.04 | |||
| 1000 | $ 1.83 | |||
Description
General part information
ECH350RM-10P
10 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole
