GPA015A120MN-ND

Obsolete

SemiQ

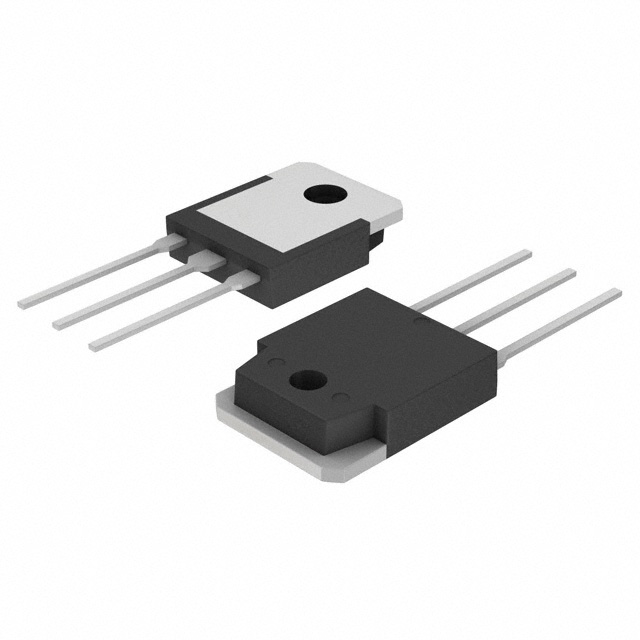

IGBT 1200V 30A 212W TO3PN

Search across all available documentation for this part.

Obsolete

SemiQ

IGBT 1200V 30A 212W TO3PN

Technical Specifications

Parameters and characteristics for this part

Specification	GPA015A120MN-ND

Current - Collector (Ic) (Max) [Max]	30 A
Current - Collector Pulsed (Icm)	45 A
Gate Charge	210 nC
IGBT Type	NPT and Trench
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	SC-65-3, TO-3P-3
Power - Max [Max]	212 W
Reverse Recovery Time (trr)	320 ns
Supplier Device Package	TO-3PN
Switching Energy	1.61 mJ, 530 µJ
Td (on/off) @ 25°C	166 ns, 25 ns
Test Condition	600 V, 15 A, 10 Ohm, 15 V
Vce(on) (Max) @ Vge, Ic	2.5 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IGBT NPT and Trench 1200 V 30 A 212 W Through Hole TO-3PN
