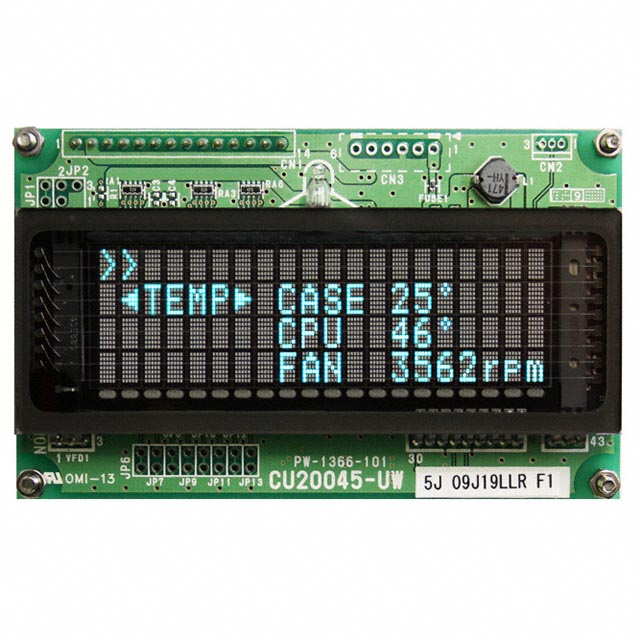

VK204-25-V
ObsoleteMatrix Orbital
VFD ALPHA/NUM DISPL 20X4 SER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VK204-25-V
ObsoleteMatrix Orbital
VFD ALPHA/NUM DISPL 20X4 SER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VK204-25-V |
|---|---|
| Character Size [y] | 2.4 mm |
| Character Size [z] | 4.7 mm |
| Display Format [x] | 20 |
| Display Format [y] | 4 |
| Display Type | Character |
| Format [x] | 5 Dots |
| Format [y] | 7 |
| Interface | Serial |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Outline L x W x H [x] | 98 mm |
| Outline L x W x H [y] | 60 mm |
| Outline L x W x H [z] | 27.7 mm |
| Viewing Area [x] | 70.8 mm |
| Viewing Area [y] | 20.9 mm |
| Voltage - Supply [Max] | 15 V |
| Voltage - Supply [Min] | 9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
VK204-25-V
Vacuum Fluorescent Display (VFD) 20 x 4 Character 9V ~ 15V Serial 98.00mm x 60.00mm x 27.70mm
Documents
Technical documentation and resources
