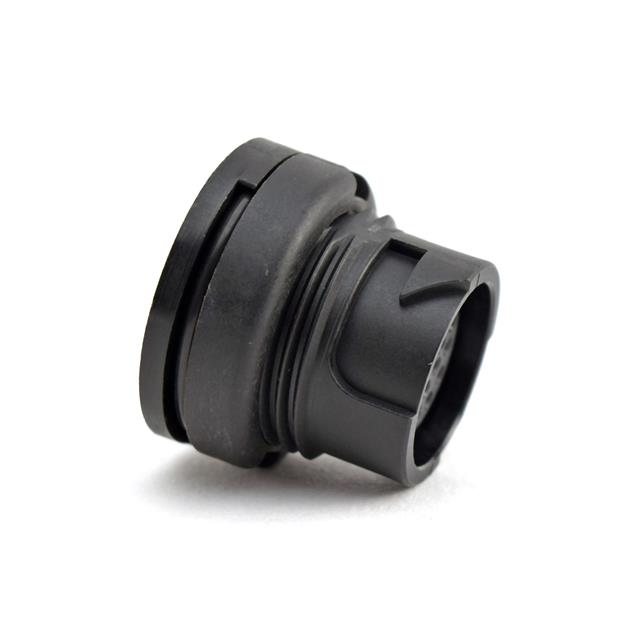

C09131G0031005U
ActiveAmphenol Sine Systems Corp
FEMALE RECEPTACLE, QUICKLOCK, SI
Deep-Dive with AI
Search across all available documentation for this part.
C09131G0031005U
ActiveAmphenol Sine Systems Corp
FEMALE RECEPTACLE, QUICKLOCK, SI
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C09131G0031005U |
|---|---|
| Color | Black |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Silver |
| Current Rating (Amps) | 10 A |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Size - Insert | M16-3 |
| Shielding | Unshielded |
| Voltage Rating | 150 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 4.63 | |
| 10 | $ 4.19 | |||
| 25 | $ 3.96 | |||
| 50 | $ 3.86 | |||
| 100 | $ 3.67 | |||
| 250 | $ 3.40 | |||
Description
General part information
C09131G0031005U
3 Position Circular Connector Receptacle, Female Sockets Solder Cup
