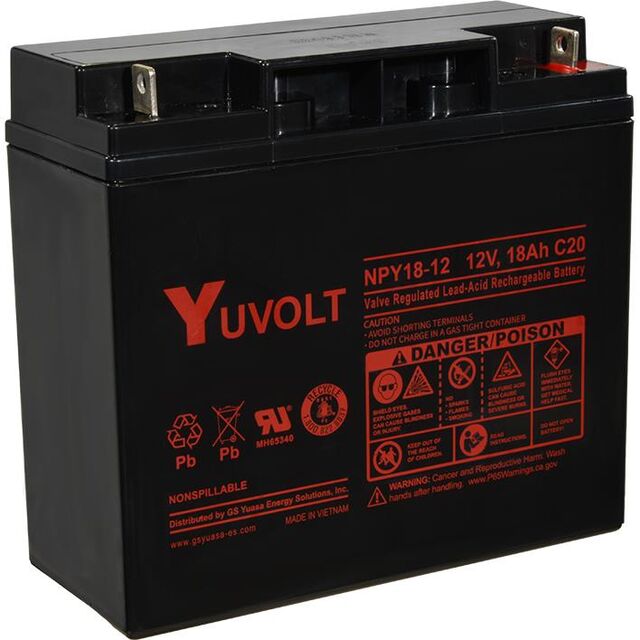

NPY18-12
ActiveGS Yuasa Energy Solutions
BATTERY LEAD ACID 12V 18AH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NPY18-12
ActiveGS Yuasa Energy Solutions
BATTERY LEAD ACID 12V 18AH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NPY18-12 |
|---|---|
| Battery Chemistry | Sealed Lead Acid (SLA, VRLA) |
| Capacity | 18 Ah |
| Discharge Rate | 20 Hr |
| Shelf Life | 12 Months |
| Shipping Info | Due to possible restrictions, a change in ship method may be required. |
| Size / Dimension [x] | 7.13 in |
| Size / Dimension [x] | 181 mm |
| Size / Dimension [y] | 3 " |
| Size / Dimension [y] | 76 mm |
| Size / Dimension [z] | 167 mm |
| Size / Dimension [z] | 6.57 in |
| Standard Charge Current | 4.3 A |
| Standard Charge Time | 20 Hrs |
| Termination Style | Bolt, M5 |
| Voltage - Rated | 12 VDC |
| Weight | 4.85 kg |
| Weight | 10.7 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 43.99 | |
| 2 | $ 43.10 | |||
| 60 | $ 42.50 | |||
| 150 | $ 41.10 | |||
Description
General part information
NPY18-12
12 V Sealed Lead Acid (SLA, VRLA) Battery Rechargeable (Secondary) 18Ah
