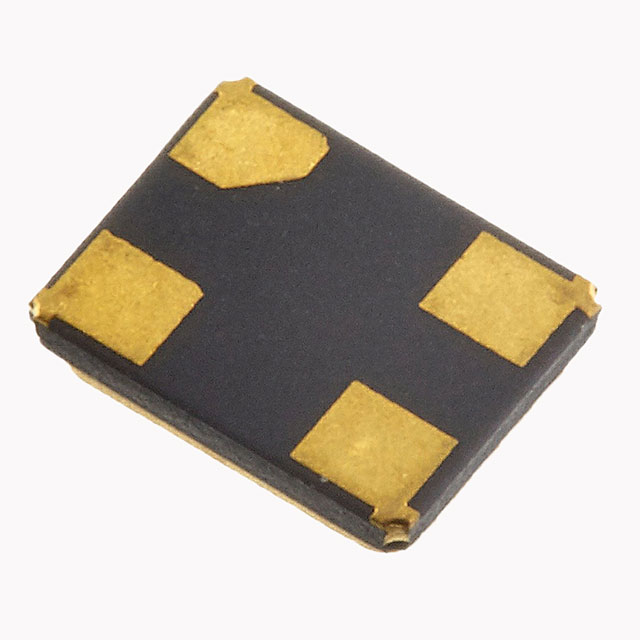

RH100-26.000-10-F-1010-EXT-TR
ActiveRaltron Electronics
CRYSTAL 26.0000MHZ 10PF SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RH100-26.000-10-F-1010-EXT-TR
ActiveRaltron Electronics
CRYSTAL 26.0000MHZ 10PF SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RH100-26.000-10-F-1010-EXT-TR |
|---|---|
| ESR (Equivalent Series Resistance) | 60 Ohms |
| Frequency | 26 MHz |
| Frequency Stability | 10 ppm |
| Frequency Tolerance | 10 ppm |
| Height - Seated (Max) [Max] [z] | 0.8 mm |
| Height - Seated (Max) [Max] [z] | 0.031 " |
| Load Capacitance | 10 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.21 | |
| 10 | $ 0.18 | |||
| 50 | $ 0.16 | |||
| 100 | $ 0.14 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.11 | |||
| Digi-Reel® | 1 | $ 0.21 | ||
| 10 | $ 0.18 | |||
| 50 | $ 0.16 | |||
| 100 | $ 0.14 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.11 | |||
| Tape & Reel (TR) | 3000 | $ 0.11 | ||
| 6000 | $ 0.10 | |||
| 15000 | $ 0.10 | |||
Description
General part information
RH100-26.000-10-F-1010-EXT-TR
26 MHz ±10ppm Crystal 10pF 60 Ohms 4-SMD, No Lead
