28B1142-100
ActiveLaird Technologies - Thermal Materials

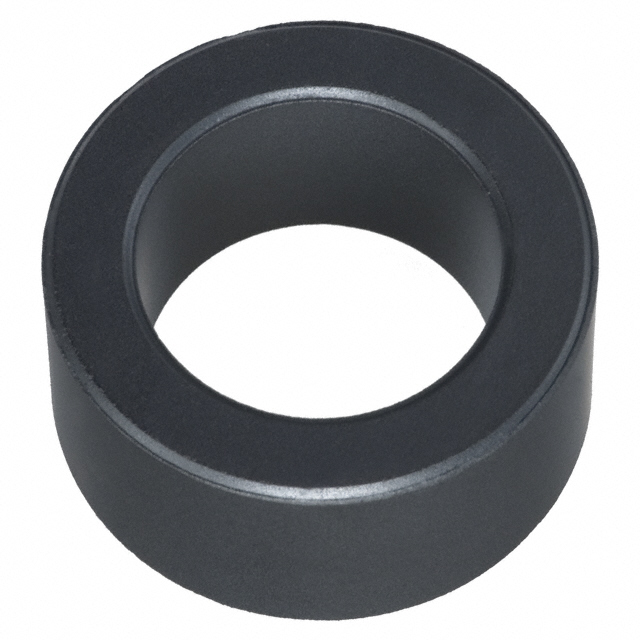

FERRITE CORE 114 OHM SOLID 19MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
28B1142-100
ActiveLaird Technologies - Thermal Materials
FERRITE CORE 114 OHM SOLID 19MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 28B1142-100 |
|---|---|
| Impedance @ Frequency | 114 Ohm |
| Inner Dimension | 19 mm |
| Inner Dimension [diameter] | 0.748 in |
| Length | 13.84 mm |
| Length | 0.545 " |
| Material | 28 |
| Mounting Type | Free Hanging |
| Outer Dimension [diameter] | 1.142 in |
| Outer Dimension [diameter] | 29.01 mm |
| Type | Round |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.43 | |
| 10 | $ 0.99 | |||
| 25 | $ 0.84 | |||
| 40 | $ 0.78 | |||
| 80 | $ 0.71 | |||
Description
General part information
28B1142-100
Solid Free Hanging Ferrite Core 114Ohm @ 100MHz ID 0.748" Dia (19.00mm) OD 1.142" Dia (29.01mm) Length 0.545" (13.84mm)
Documents
Technical documentation and resources
