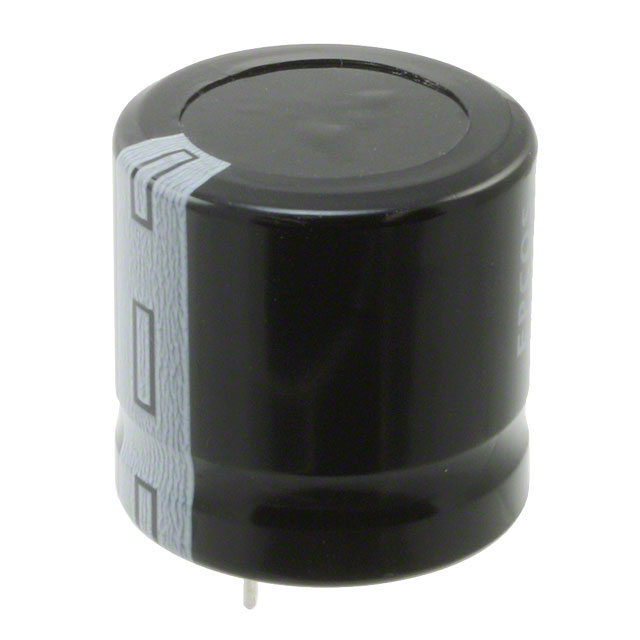

B43644C9397M062
ActiveEPCOS - TDK Electronics
CAP ALUM 390UF 20% 400V SNAP TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
B43644C9397M062
ActiveEPCOS - TDK Electronics
CAP ALUM 390UF 20% 400V SNAP TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | B43644C9397M062 |
|---|---|
| Applications | General Purpose |
| Capacitance | 390 µF |
| ESR (Equivalent Series Resistance) | 250 mOhm |
| Impedance | 370 mOhms |
| Lead Spacing | 0.394 in |
| Lead Spacing | 10 mm |
| Lifetime @ Temp. | 5000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial, Can - Snap-In - 3 Lead |
| Polarization | Polar |
| Ripple Current @ Low Frequency | 1.67 A |
| Size / Dimension [diameter] | 1.378 in |
| Size / Dimension [diameter] | 35 mm |
| Tolerance | 20 % |
| Voltage - Rated | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 240 | $ 5.33 | |
Description
General part information
B43644C9397M062
390 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In - 3 Lead 250mOhm @ 100Hz 5000 Hrs @ 105°C
