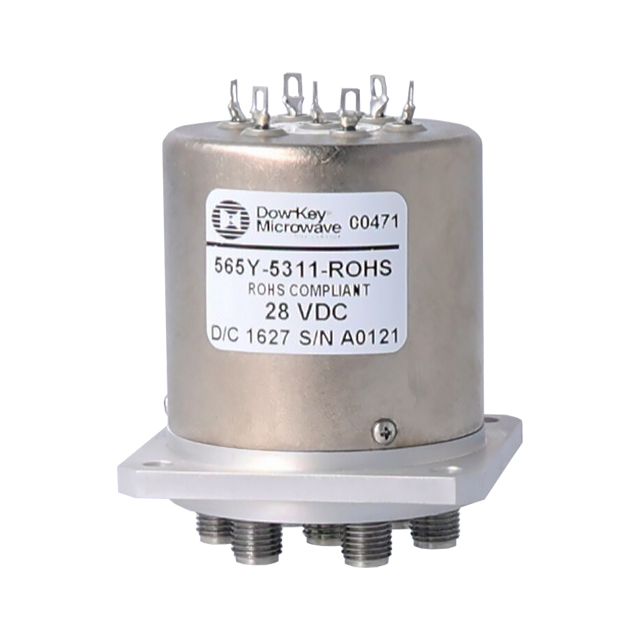

565Y-5311-ROHS
ActiveDow-Key Microwave Corporation
SP6T SMK NORM-OPEN 28V 40GHZ ROH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
565Y-5311-ROHS
ActiveDow-Key Microwave Corporation
SP6T SMK NORM-OPEN 28V 40GHZ ROH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 565Y-5311-ROHS |
|---|---|
| Circuit | SP6T |
| Frequency Range [Max] | 40 GHz |
| Frequency Range [Min] | 0 Hz |
| Impedance | 50 Ohms |
| Insertion Loss [Max] | 0.95 dB |
| Isolation [Min] | 50 dB |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | Module |
| Package / Case | 2.9 mm |
| RF Type | General Purpose |
| Test Frequency | 40 GHz |
| Topology | Reflective |
| Voltage - Supply [Max] | 32 VDC |
| Voltage - Supply [Min] | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2197.00 | |
Description
General part information
565Y-5311-ROHS
RF Switch IC General Purpose SP6T 50Ohm
