UCA-3019-GY-C
ActiveAgilink Microwires
UCA GREEN 1000FT, AWG30/19 600V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UCA-3019-GY-C
ActiveAgilink Microwires
UCA GREEN 1000FT, AWG30/19 600V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UCA-3019-GY-C |
|---|---|
| Cable Type | Hook-Up |
| Conductor Material | Copper, Silver Coated |
| Features | High Temperature, Chemical Resistant, UV Resistant |
| Jacket (Insulation) Diameter | 0.022 in |
| Jacket (Insulation) Diameter | 0.55 mm |
| Jacket (Insulation) Material | Perfluoroalkoxy (PFA) |
| Jacket Color | Gray |
| Length | 1000 ft |
| Length | 304.8 m |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -196 °C |
| Voltage | 600 V |
| Wire Gauge | 30 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 735.00 | |
| 2 | $ 710.00 | |||
| 3 | $ 668.00 | |||
| 5 | $ 636.84 | |||
| 10 | $ 566.08 | |||
Description
General part information
UCA-3019-GY-C

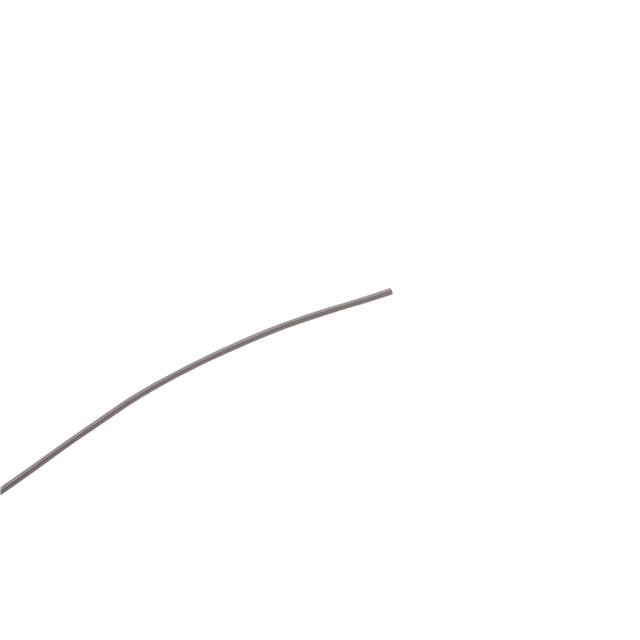

30 AWG Hook-Up Wire 19/42 Gray 600V 1000.0' (304.8m)
Documents
Technical documentation and resources
