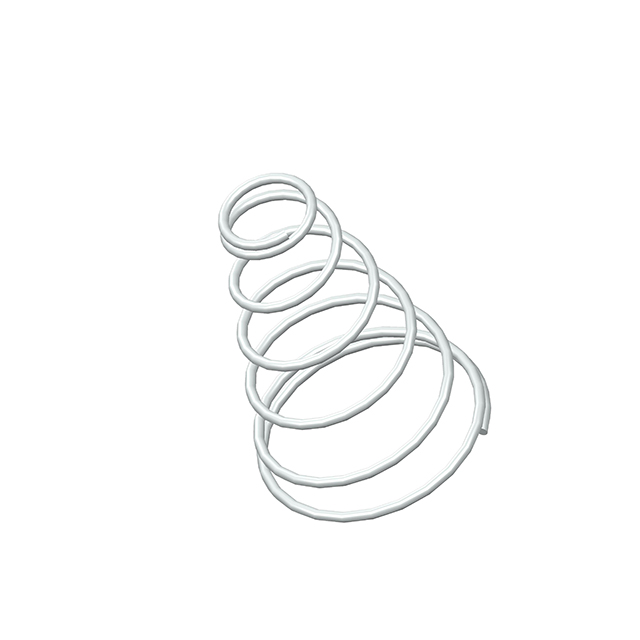

TA-2218CS
ActiveCentury Spring Corp
LO= 0.5, SO= 0.203, W= 0.022
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TA-2218CS
ActiveCentury Spring Corp
LO= 0.5, SO= 0.203, W= 0.022
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TA-2218CS |
|---|---|
| Diameter - Inside [diameter] | 0.16 in |
| Diameter - Inside [diameter] | 4.06 mm |
| Diameter - Small Outside [diameter] | 0.203 " |
| Diameter - Small Outside [diameter] | 5.16 mm |
| End Style | Closed |
| Finish | None |
| Free Length | 0.75 in |
| Free Length | 19.05 mm |
| Material | Stainless Steel |
| Rate | 1.8 lbs/in |
| Wire Diameter [diameter] | 0.56 mm |
| Wire Diameter [diameter] | 0.022 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
TA-2218CS
LO= 0.5, SO= 0.203, W= 0.022
Documents
Technical documentation and resources
