ALD2721PB
Advanced Linear Devices Inc.

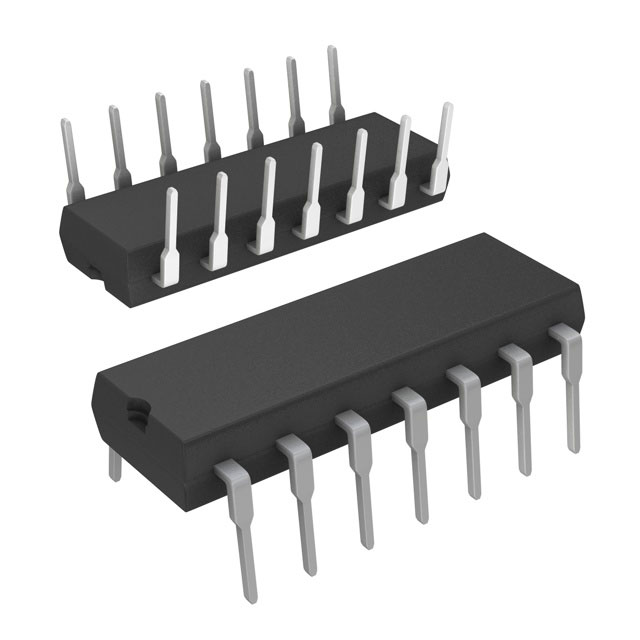

IC CMOS 2 CIRCUIT 14DIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ALD2721PB
Advanced Linear Devices Inc.
IC CMOS 2 CIRCUIT 14DIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ALD2721PB |
|---|---|
| Amplifier Type | CMOS |
| Current - Input Bias | 0.01 pA |
| Current - Output / Channel | 1 mA |
| Current - Supply | 200 µA |
| Gain Bandwidth Product | 1 MHz |
| Mounting Type | Through Hole |
| Number of Circuits | 2 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Output Type | Rail-to-Rail |
| Package / Case | 14-DIP |
| Package / Case [x] | 0.3 " |
| Package / Case [y] | 7.62 mm |
| Slew Rate | 1 V/µs |
| Voltage - Input Offset | 50 µV |
| Voltage - Supply Span (Max) [Max] | 10 V |
| Voltage - Supply Span (Min) [Min] | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 25 | $ 9.50 | |
Description
General part information
ALD2721PB
CMOS Amplifier 2 Circuit Rail-to-Rail 14-PDIP
