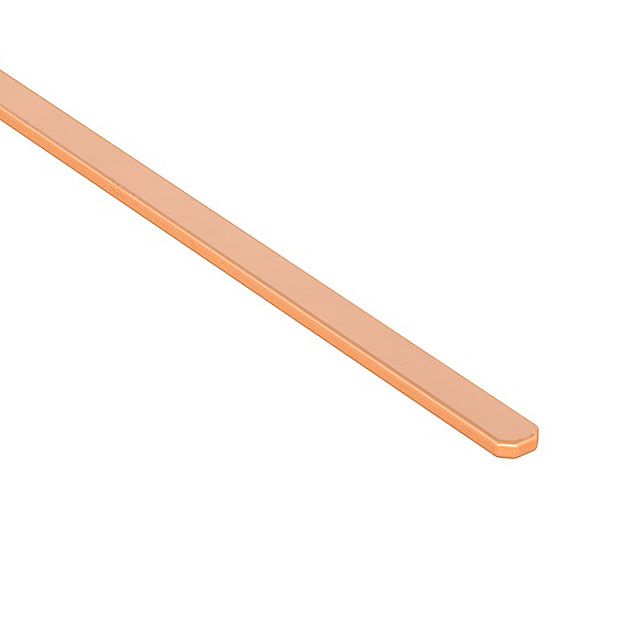

ATS-HP-F6L250S16W-249 - ATS-HP-F

ATS-HP-F6L250S16W-249

Active
Advanced Thermal Solutions Inc.

LIQUID COLD PLATES, LIQUID COOLING & HEAT PIPES HEAT PIPE, COPPER, HIGH PERFORMANCE, FLAT, 250X8.37X2.3MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHeat Pipe PerformanceDatasheet+3
ATS-HP-F6L250S16W-249 - ATS-HP-F

ATS-HP-F6L250S16W-249

Active
Advanced Thermal Solutions Inc.

LIQUID COLD PLATES, LIQUID COOLING & HEAT PIPES HEAT PIPE, COPPER, HIGH PERFORMANCE, FLAT, 250X8.37X2.3MM

Deep-Dive with AI

DocumentsHeat Pipe PerformanceDatasheet+3

Technical Specifications

Parameters and characteristics for this part

SpecificationATS-HP-F6L250S16W-249
Attachment MethodEpoxy, Solder
Height [z]0.091 in
Height [z]2.3 mm
Length [x]9.843 "
Length [x]250 mm
MaterialCopper
Operating Temperature [Max] [custom]120 °C
Operating Temperature [Min] [custom]30 °C
Power - Cooling250 mm, 20.6 W
ShapeFlat
TypeHeat Pipe
Wick TypeSintered
Width [x]8.37 mm
Width [x]0.33 in
Working FluidDistilled Water

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
ArrowN/A 1$ 10.52
DigikeyBulk 100$ 10.95
SagerN/A 1$ 14.54
5$ 13.57
10$ 13.14
25$ 12.34
50$ 11.63
100$ 10.86
500$ 10.58

Description

General part information

ATS-HP-F6L250S16W-249

Heat Pipe Flat Copper Sintered
