MS-362-051-445-220S
ActiveAirBorn, Inc.
D-SUB, RCPTL, .050", 3ROW, 51POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS-362-051-445-220S
ActiveAirBorn, Inc.
D-SUB, RCPTL, .050", 3ROW, 51POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MS-362-051-445-220S |
|---|---|
| Connector Style | Micro-D, D-Type |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polyphenylene Sulfide (PPS) |
| Flange Feature | Mating Side, Female Screwlock (2-56) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 51 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Primary Material | Metal |
| Shell Material, Finish | Nickel Plated, Aluminum Alloy, Electroless |
| Shell Size, Connector Layout [custom] | 0.05 |
| Shell Size, Connector Layout [custom] | 0.05 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 567.19 | |
| 10 | $ 447.85 | |||
Description
General part information
MS-362-051-445-220S

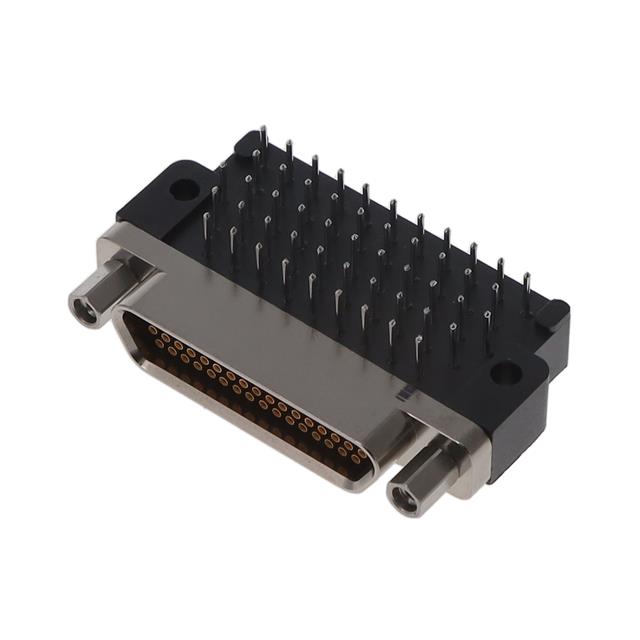

51 Position D-Type, Micro-D Receptacle, Female Sockets Connector
Documents
Technical documentation and resources
