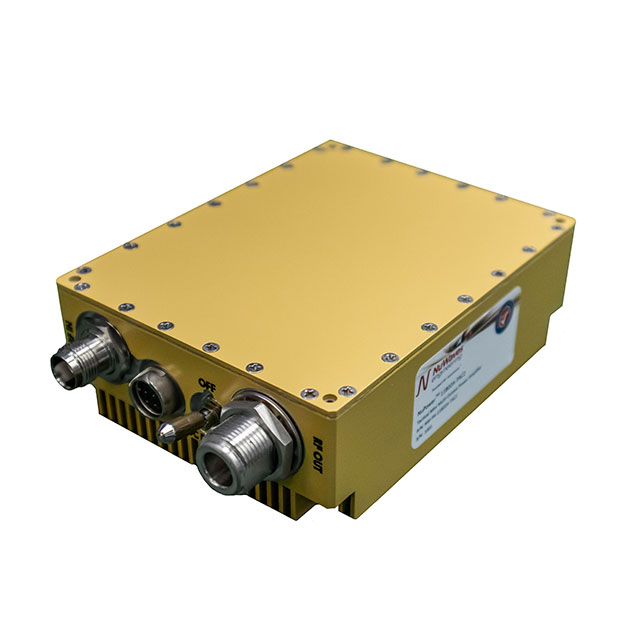

NW-PA-11B02A-TAC2
ActiveNuWaves RF Solutions
IC RF AMP GPS 200MHZ-2.6GHZ
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NW-PA-11B02A-TAC2
ActiveNuWaves RF Solutions
IC RF AMP GPS 200MHZ-2.6GHZ
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NW-PA-11B02A-TAC2 |
|---|---|
| Current - Supply | 1.3 A |
| Frequency [Max] | 2.6 GHz |
| Frequency [Min] | 200 MHz |
| Gain | 43 dB |
| Mounting Type | Chassis Mount |
| P1dB | 33 dBm |
| Package / Case | Module |
| RF Type | General Purpose |
| Test Frequency | 2.6 GHz |
| Voltage - Supply [Max] | 32 VDC |
| Voltage - Supply [Min] | 11 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 7519.00 | |
Description
General part information
NW-PA-11B02A-TAC2
RF Amplifier IC General Purpose 200MHz ~ 2.6GHz
