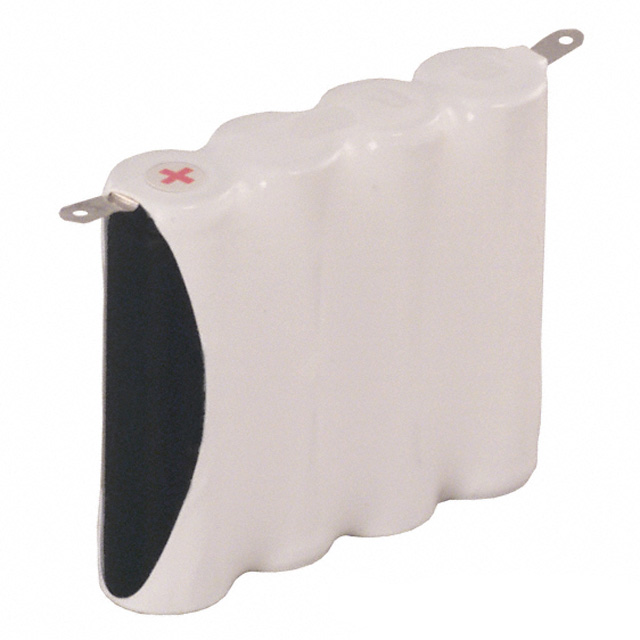

HR-4/3FAU(4.5AH)F4
ActiveFDK America, Inc., a member of Fujitsu Group
BATTERY PACK NIMH 4.8V 4/3FA
Deep-Dive with AI
Search across all available documentation for this part.
HR-4/3FAU(4.5AH)F4
ActiveFDK America, Inc., a member of Fujitsu Group
BATTERY PACK NIMH 4.8V 4/3FA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HR-4/3FAU(4.5AH)F4 |
|---|---|
| Battery Cell Size | 4/3FA |
| Battery Chemistry | Nickel Metal Hydride |
| Capacity | 4.1 Ah |
| Number of Cells | 4 |
| Rechargeability | True |
| Size / Dimension [x] | 2.83 " |
| Size / Dimension [x] | 72 mm |
| Size / Dimension [y] | 18 mm |
| Size / Dimension [y] | 0.71 in |
| Size / Dimension [z] | 67.5 mm |
| Size / Dimension [z] | 2.66 " |
| Structure | Side to Side |
| Structure [custom] | 4 |
| Structure [custom] | 1 |
| Termination Style | Solder Tab |
| Voltage - Rated | 4.8 V |
| Weight | 248.57 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 54.53 | |
| 10 | $ 45.29 | |||
| 50 | $ 39.93 | |||
| 100 | $ 38.00 | |||
| 250 | $ 35.21 | |||
Description
General part information
HR-4/3FAU(4.5AH)F4
4/3FA 4.8 V Nickel Metal Hydride Battery Pack
Documents
Technical documentation and resources
No documents available
